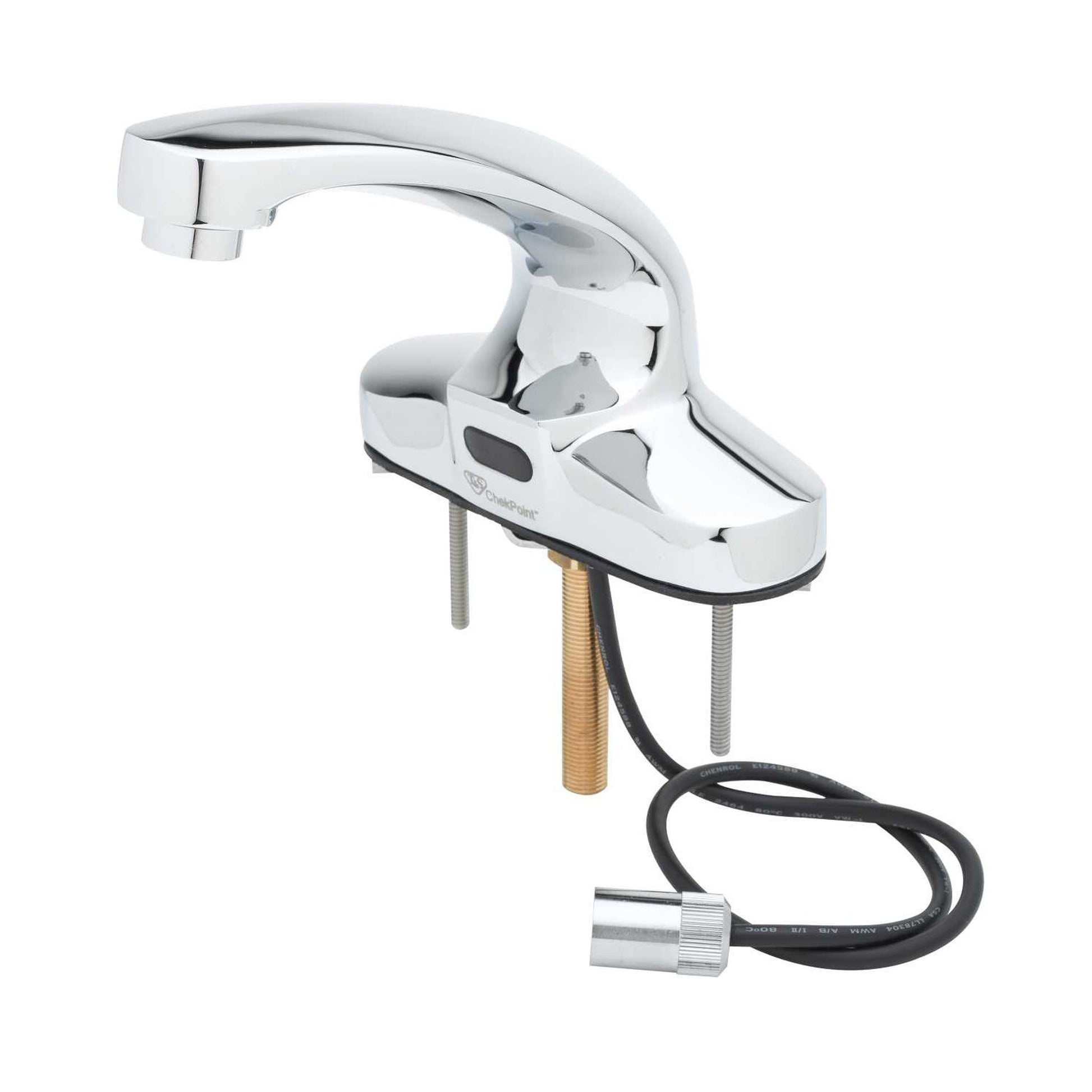

T&S Brass ChekPoint Electronic Faucet Deck Mount 4" Centerset 0.5 - EC-3103-VF05

The T&S Brass ChekPoint EC-3103-VF05 is a commercial deck-mount electronic sensor faucet designed for touchless handwashing in foodservice, institutional, and high-traffic restroom applications. It delivers hands-free operation with built-in temperature and flow control, making it a practical choice for operators focused on cross-contamination reduction and water conservation.

• Deck-mount electronic sensor faucet with a polished chrome-plated brass body and integral spout, designed for commercial sink installations requiring touchless operation.

• Body is constructed of polished chrome-plated brass with a vandal-resistant non-aerated spray device rated at 0.5 GPM; includes a temperature control mixing valve with integral check valves.

• Spout length is 4-7/8 inches, overall faucet height is 5-1/16 inches, and faucet width is 6-1/8 inches; mounts on 4-inch centers.

• Includes an AC/DC control module with internal flow control setting switches and 18-inch flexible stainless steel supply hoses with 3/8-inch compression connections; accepts a 100-240 VAC adapter or can be battery-powered with (4) AA batteries.

• Water-resistant control module allows adjustment of auto time-out and shut-off delay settings; an optional auto flush feature runs water for 30 seconds after every 12 hours of inactivity to prevent stagnation, and an LED indicator signals when battery replacement is needed.

• Backed by a three-year limited warranty from T&S Brass.

Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and UL 1951; meets ADA ANSI/ICC A117.1 requirements.

Dimensions: Spout Length: 4-7/8" | Faucet Height: 5-1/16" | Faucet Width: 6-1/8" | Mounting Centers: 4"
