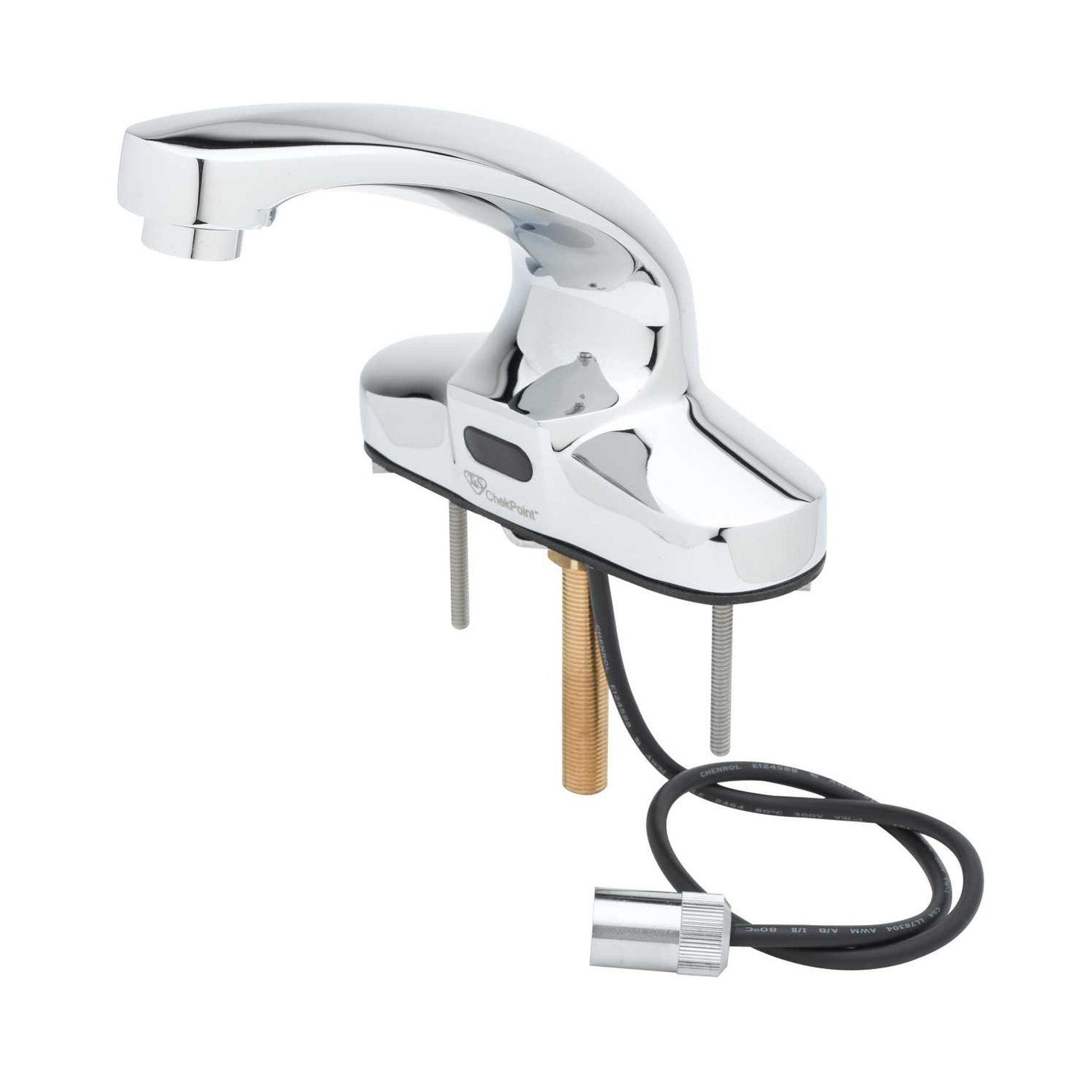

T&S Brass ChekPoint Sensor Faucet Deck Mount 4" Centerset 2.2 GPM ADA - EC-3103

The T&S Brass ChekPoint EC-3103 is a commercial touchless sensor faucet designed for hands-free operation at handwashing sinks, bar sinks, and lavatory sinks in restaurants, institutions, and other high-traffic foodservice facilities. It combines a polished chrome-plated brass body with an AC/DC control module, giving operators flexibility in power supply and flow management without requiring a dedicated electrical circuit.

• Hands-free electronic sensor faucet for commercial foodservice, institutional, and high-traffic restroom applications where touchless operation reduces cross-contamination risk
• Polished chrome-plated brass body with integral cast spout; includes 18" flexible stainless steel supply hoses with 3/8" compression connections and a mechanical temperature control mixing valve with check valves
• Spout length 4-7/8", faucet height 5-1/16", faucet width 6-1/8", with 4-1/16" clearance; requires sink holes punched on 4" centers for installation
• Deck mount centerset installation on 4" centers; power runs on plug-in AC transformer (100-240 VAC input) or 4 AA batteries (DC), with a low battery LED indicator light
• Water-resistant control module includes internal flow control switches for adjusting auto time-out and shut-off delay settings; optional auto flush feature runs water for 30 seconds after every 12 hours of inactivity to maintain line hygiene
• 2.2 GPM vandal-resistant aerator (Series 8, B-0199-08); control module box measures 3-5/8" x 4-3/16" x 2" deep and mounts below deck

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and UL 1951
• Meets ADA ANSI/ICC A117.1 requirements
• cCSAus and cULus listed

Dimensions: Spout Length: 4-7/8" | Faucet Height: 5-1/16" | Faucet Width: 6-1/8"
