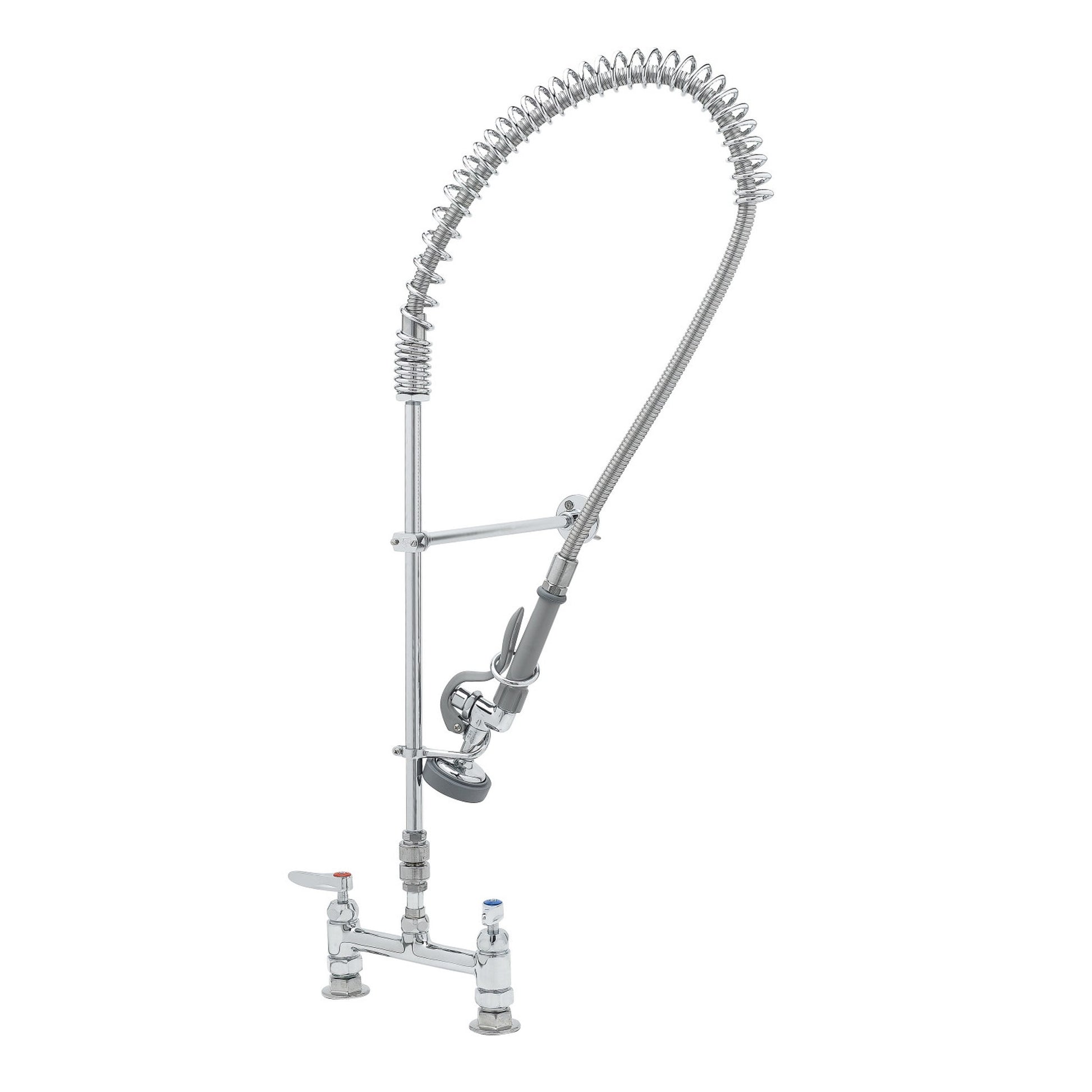

T&S Brass EasyInstall Deck Mount Pre-Rinse Faucet NSF, 8" Centers - B-2277-CR

The T&S Brass B-2277-CR EasyInstall deck mount pre-rinse faucet is a commercial warewashing unit designed for 3-compartment sink setups in restaurants, cafeterias, and institutional kitchens where a reliable, code-compliant pre-rinse station is needed at the dish pit. It ships with all hardware required for installation, making it a straightforward drop-in solution for new builds and sink replacements on standard 8" center deck-mount sinks.

• Deck-mounted commercial pre-rinse unit with a spring action gooseneck, 1.15 GPM spray valve (model B-0107), and ergonomic squeeze handle for warewashing applications

• Polished chrome-plated brass body, riser, and spray valve body; 44" flexible stainless steel hose; chrome-plated metal lever handles

• Overall faucet height is 39 3/8" and faucet width is 12 5/8"; deck centers are adjustable to 8"

• Connects via 1/2" NPT female inlets with 2" adjustable flanges; includes 1/2" NPT supply nipple kit, 18" riser, and a 12" wall bracket for added stability

• Quarter-turn Cerama ceramic cartridges provide leak-resistance with no seat washer and use up to 20% less water than compression cartridges; check valves are included to prevent cross-flow

• Includes a continuous pressure vacuum breaker that prevents backflow of non-potable liquids into the potable water supply

• Certified by CSA to meet drinking water system component lead content standards for the U.S. and Canada per NSF/ANSI/CAN 372

• Low lead compliant and 2019 DOE PRSV Class II compliant

Dimensions: Height: 39 3/8", Width: 12 5/8", 8" adjustable deck centers
