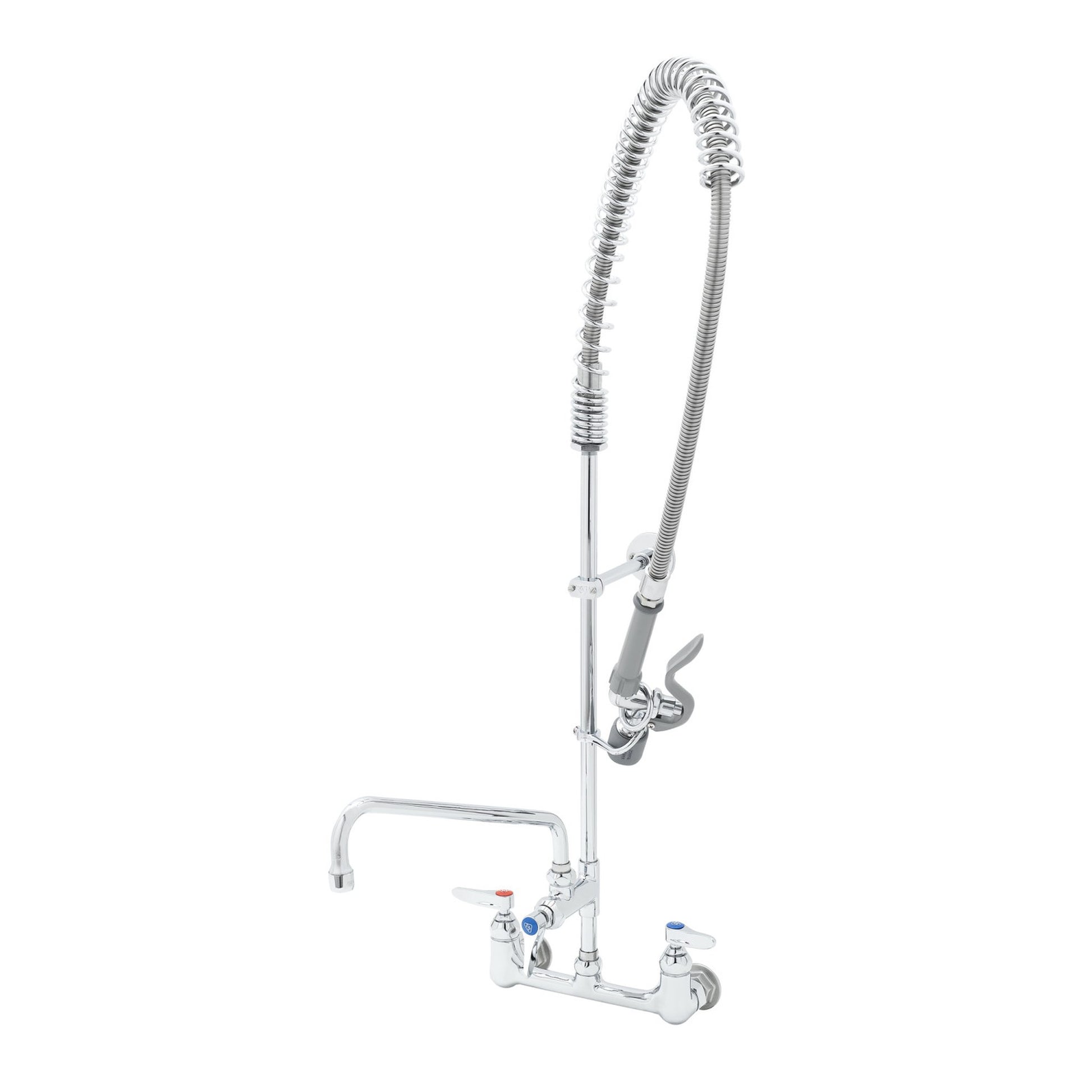

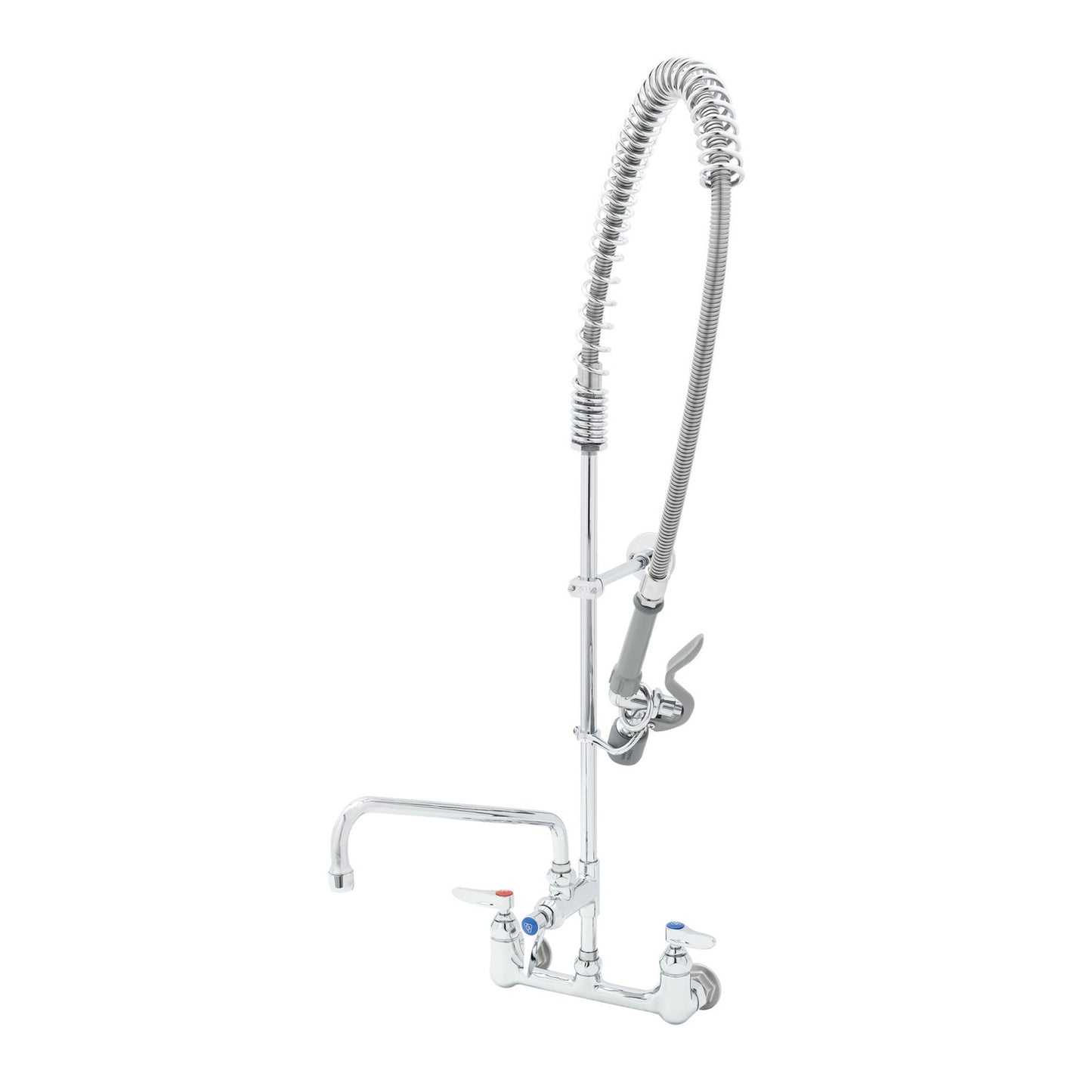

T&S Brass EasyInstall Pre-Rinse Unit Chrome Wall Mount 8" - B-0133-ADF12-BJ

The T&S Brass B-0133-ADF12-BJ EasyInstall commercial pre-rinse unit is a complete wall-mount assembly built for high-volume warewashing stations in restaurants, cafeterias, and institutional kitchens. It ships as a ready-to-install unit that connects directly to existing wall supply lines without requiring additional components.

• Wall-mount pre-rinse unit for commercial kitchen use, includes mixing faucet, 6-inch wall bracket, overhead spring body, and B-0107-J spray valve rated at 1.07 GPM.

• Body, tubular nozzle, add-on faucet body, and riser are constructed of polished chrome-plated brass; hose is stainless steel with a chrome-plated metal handle.

• Includes an 18-inch riser and B-0044-H stainless steel flexible hose with polyurethane inner hose for durability and extended service life.

• Mounts at 8-inch centers with 1/2-inch NPT female inlets; add-on faucet features a 12-inch swing nozzle with Eterna cartridges, spring checks, and lever handles.

• The heat-resistant spray handle includes a hold-down ring, allowing the valve to be locked in continuous spray position during extended use.

• EPAct2005 compliant; the -BJ designation indicates this unit is equipped with the B-0107-J spray valve at 1.07 GPM, differentiating it from the standard B-0107 valve variants in the B-0133 series.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

Dimensions: 37-9/16" H overall; 8" faucet centers (adjustable 7-3/4" to 8-1/4"); 18" riser; 44" flexible hose; 12" add-on swing nozzle; 6" wall bracket
