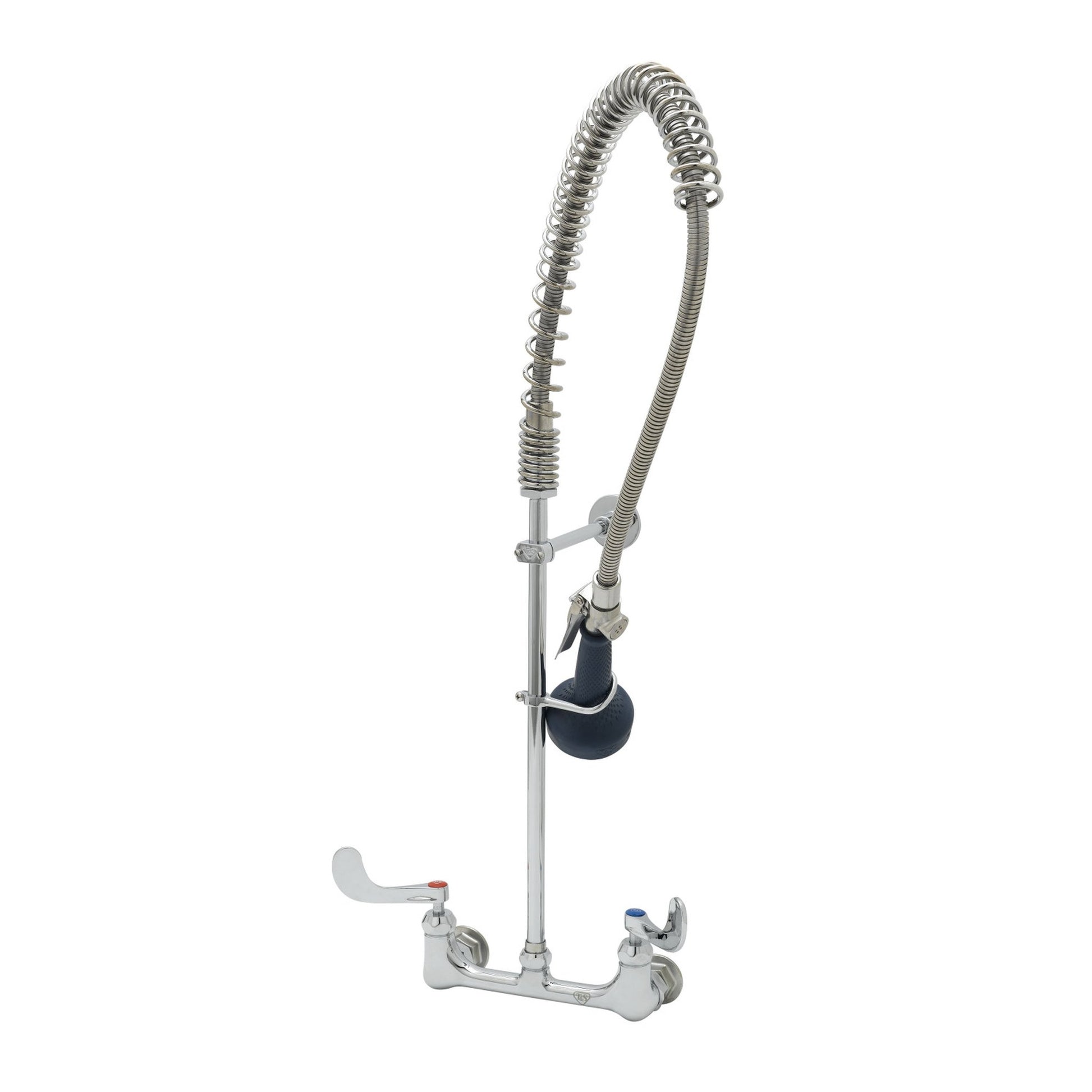

T&S Brass EasyInstall Pre-Rinse Unit NSF Chrome Brass 8" Wall - B-0133-CR-B08W4

The T&S Brass B-0133-CR-B08W4 EasyInstall pre-rinse unit is a wall-mounted commercial faucet assembly built for dish stations, pot sinks, and high-volume warewashing lines where reliable rinsing and fast installation are both priorities. This NSF-certified chrome unit ships as a complete assembly ready to mount at 8-inch wall centers.

• Wall-mounted commercial pre-rinse unit with 8-inch centers, an 18-inch riser, 6-inch adjustable wall bracket, overhead spring, and spray valve holder -- all included as a complete assembly.

• Body, riser, and spray valve body are polished chrome-plated brass; the flexible hose is stainless steel with chrome-plated metal handles.

• Includes a 44-inch flexible stainless steel hose and a 1.07 GPM spray valve with an insulated grip handle for extended-service use.

• The 4-inch wrist action handles allow forearm or elbow operation, and the unit connects via 1/2-inch NPT female inlets, compatible with standard commercial plumbing supply lines.

• Quarter-turn Cerama cartridges with built-in check valves prevent cross-flow between hot and cold water supply lines, reducing maintenance and extending service life.

• 2019 DOE PRSV - Class II compliant, meeting current federal energy and water conservation requirements for pre-rinse spray valves.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

Dimensions: 8" wall centers; 18" riser; 44" flexible hose; 6" adjustable wall bracket
