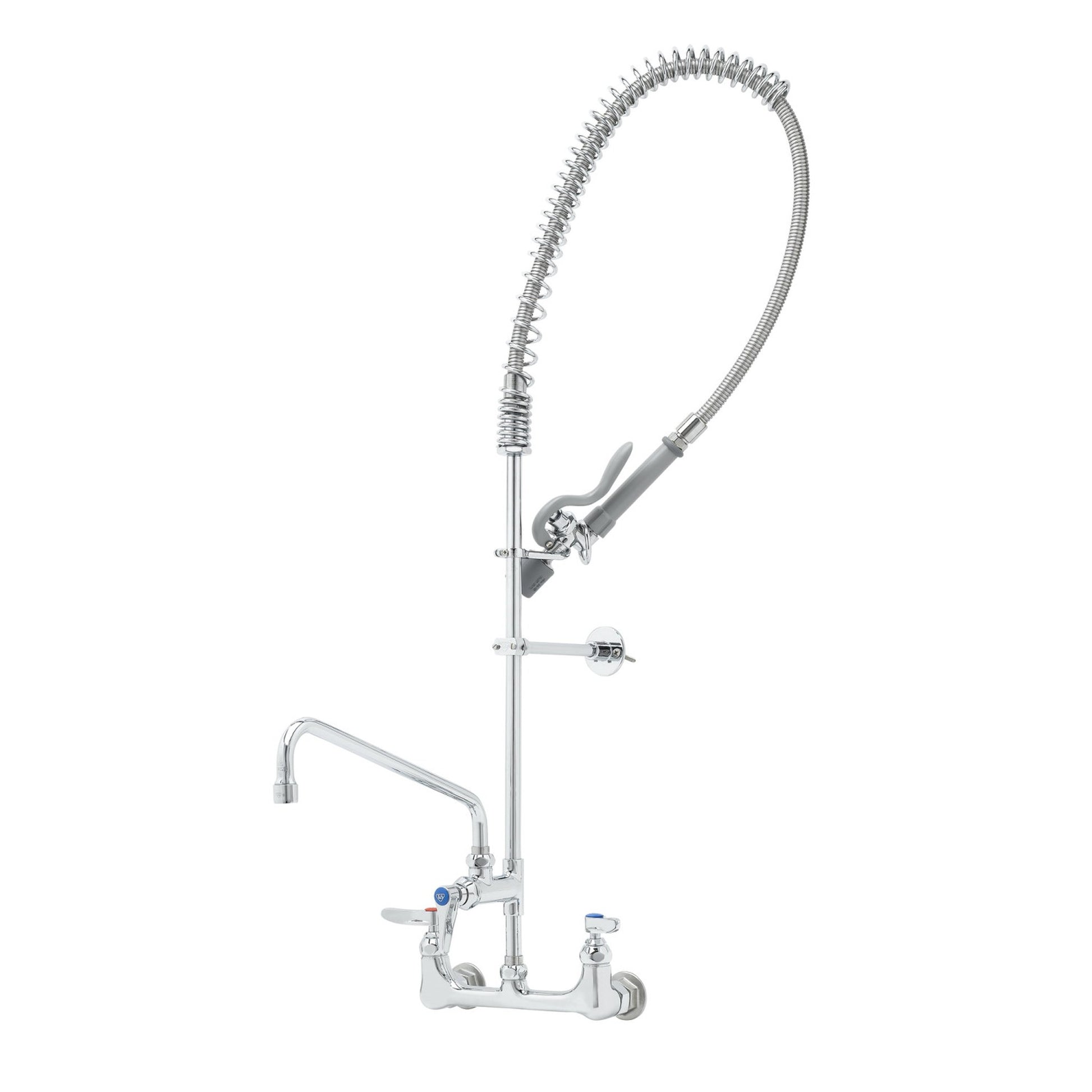

T&S Brass EasyInstall Pre-Rinse Unit NSF Wall Mount 8" - B-0133-ADF12-BC

The T&S Brass B-0133-ADF12-BC is an NSF-listed commercial pre-rinse unit designed for warewashing stations in restaurants, cafeterias, and other foodservice operations. It mounts directly to the wall on 8" centers and ships as a complete assembly, making it a straightforward choice for new installations or direct replacements.

• Wall-mount overhead spring style pre-rinse unit configured on 8" centers, designed for commercial warewashing sink applications.

• Polished chrome-plated brass body construction throughout, including the mixing faucet, add-on faucet body, riser, and valve body; stainless steel flexible hose and chrome-plated metal faucet body components.

• Overall height is 37-9/16" with a 44" stainless steel flexible hose, an 18" riser, and a 12" swing nozzle on the add-on faucet.

• Connects via 1/2" NPT female inlets and operates at water temperatures between 40-140°F and pressures between 20-125 psi.

• Quarter-turn Eterna compression cartridges include spring checks to prevent cross-flow of water between hot and cold supply lines.

• Includes a 6" wall bracket, quarter-turn compression cartridge, lever handle, stream regulator tip, add-on faucet, and a 0.65 GPM low-flow spray valve (model B-0107-C); low-lead compliant.

Certifications:

• Low-lead compliant and certified to ASME A112.18.1/CSA B125.1 and NSF/ANSI 61.

• EPAct 2005 compliant.

Dimensions: Overall Height: 37-9/16" | Hose Length: 44" | Add-On Faucet Length: 12" | Centers: 8"
