T&S Brass Enclosed Hose Reel System Coated Steel Commercial - B-7222-C01XS1E

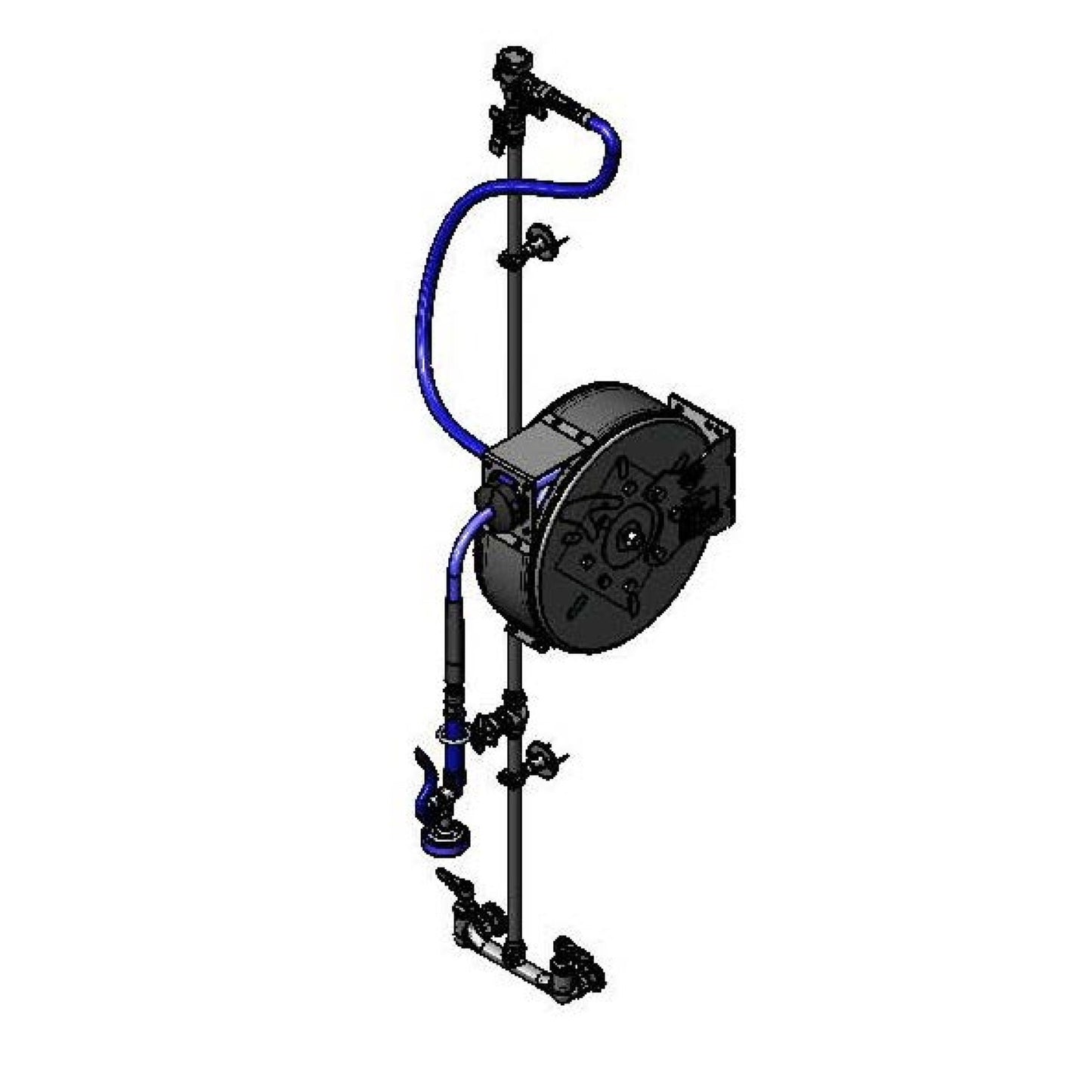

The T&S Brass B-7222-C01XS1E is a complete enclosed hose reel system built for commercial foodservice operations that need a reliable, all-in-one washdown and sanitation solution. It ships with every component required for installation, including the hose reel, mixing faucet, spray valve, vacuum breaker, and all connecting hardware.

• Enclosed commercial hose reel system designed for washdown, cleaning, and sanitation tasks in commercial kitchens and janitorial areas, sold as a complete assembly ready for installation.
• Epoxy-coated steel hose reel casing with a polished chrome-plated brass faucet body; includes stainless steel quick disconnect fittings and a 3/8" ID x 30-foot non-marking hose.
• Hose reel connects to an 8-inch center-to-center wall mount mixing faucet with 1/2" NPT female inlets; includes a 3/8" NPT x 36" flexible water hose connector; system weighs 61.2 lbs.
• Mounts to the wall using a multi-fit bracket and two 2-3/8" wall brackets; also includes an EasyInstall 16" riser and a rigid 40" riser to accommodate different installation configurations.
• Ratcheting system holds the hose at the pulled length until a slight tug triggers automatic retraction; adjustable hose bumper controls how much hose remains extended; stainless steel quick disconnect fittings simplify routine maintenance and servicing.
• Includes the high-flow blue spray valve with swivel (EB-0107) rated at 2.92 GPM, quarter-turn Eterna compression cartridges with spring checks, lever handles with color-coded indexes, and a continuous pressure vacuum breaker; all components are included and shipped together.

Dimensions: 40" L x 11" W x 18" H
