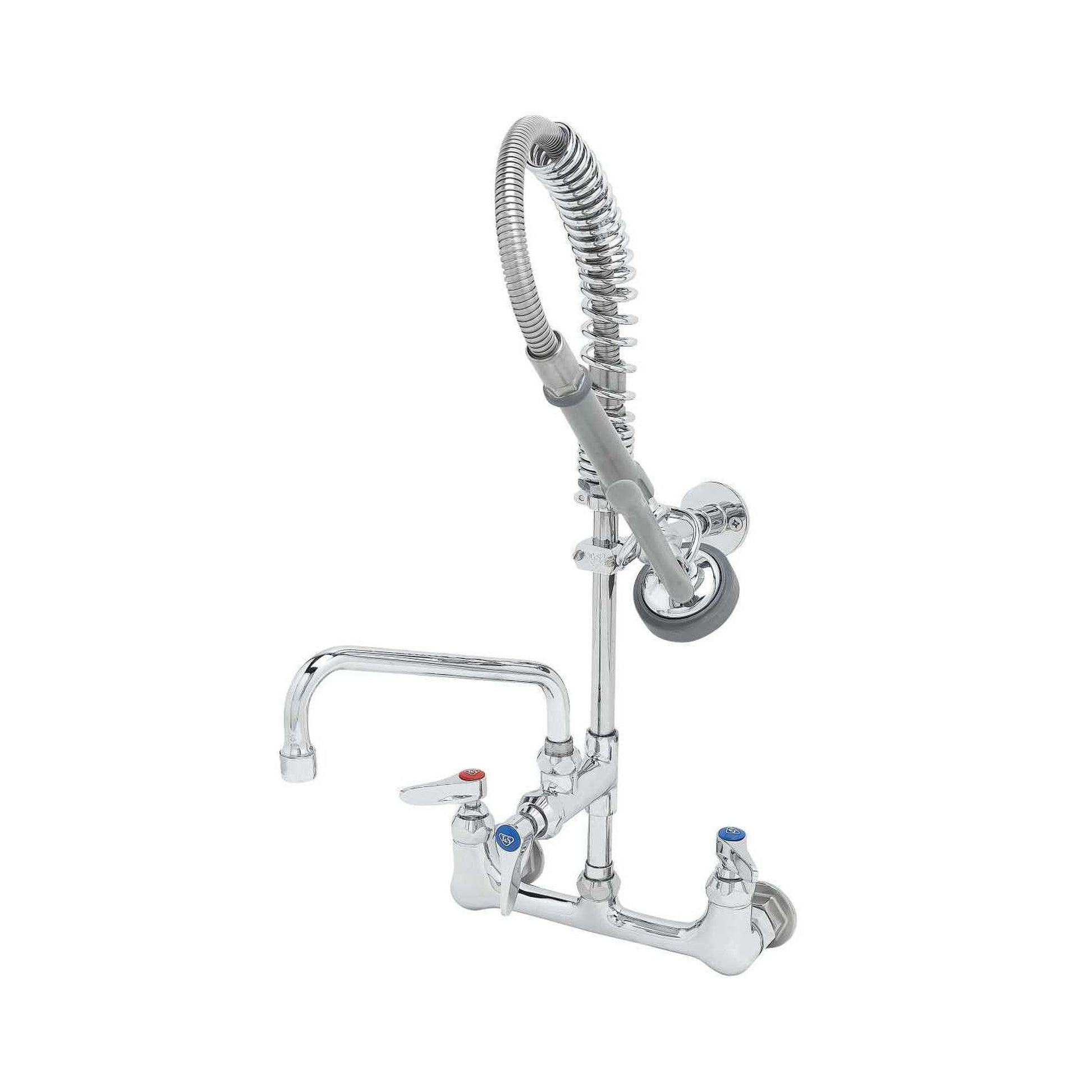

T&S Brass Mini Pre-Rinse Faucet NSF Wall Mount 8" Centers, 6" - MPZ-8WLN-06

The T&S Brass MPZ-8WLN-06 is a commercial wall mount mini pre-rinse faucet unit designed for warewashing stations in restaurants, cafeterias, and other foodservice operations where overhead clearance or under-shelf space is limited. It ships as a complete assembly with the mixing faucet, add-on faucet, hose, spray valve, wall bracket, and overhead spring included.

• Wall mount mini pre-rinse unit for commercial warewashing applications, designed with a low-profile overhead spring configuration suited for tight installations under shelving or in compact sink areas
• Polished chrome plated brass body with a 24" flexible stainless steel hose, heat-resistant gray handle, and chrome plated metal lever handles with color-coded indexes for hot and cold identification
• Overall assembly height is 22-1/8"; mounts on 8" adjustable centers with a 6" swing nozzle (stream regulator outlet) and an 8" riser; includes a 6" adjustable wall bracket (model B-0109-01)
• Connects via 1/2" NPT female eccentric inlets with 2" flanges; operates at 20-125 psi and 40-140 degrees F water temperature; EasyInstall design simplifies wall mounting setup
• Eterna compression cartridges with spring checks prevent cross-flow of hot and cold water; the 6" add-on swing faucet provides standard flow at the sink when the pre-rinse spray valve is not in use
• Spray valve is T&S Brass model B-0107 rated at 1.15 GPM, meeting 2019 DOE PRSV Class II flow requirements; backed by a T&S Brass three-year warranty

• Certified to ASME A112.18.1/CSA B125.1
• Certified to NSF 61-Section 9 and NSF 372 (low lead compliant)
• 2019 DOE PRSV Class II compliant

Dimensions: Overall Height: 22-1/8" | Faucet Centers: 8" | Swing Nozzle Length: 6" | Hose Length: 24"
