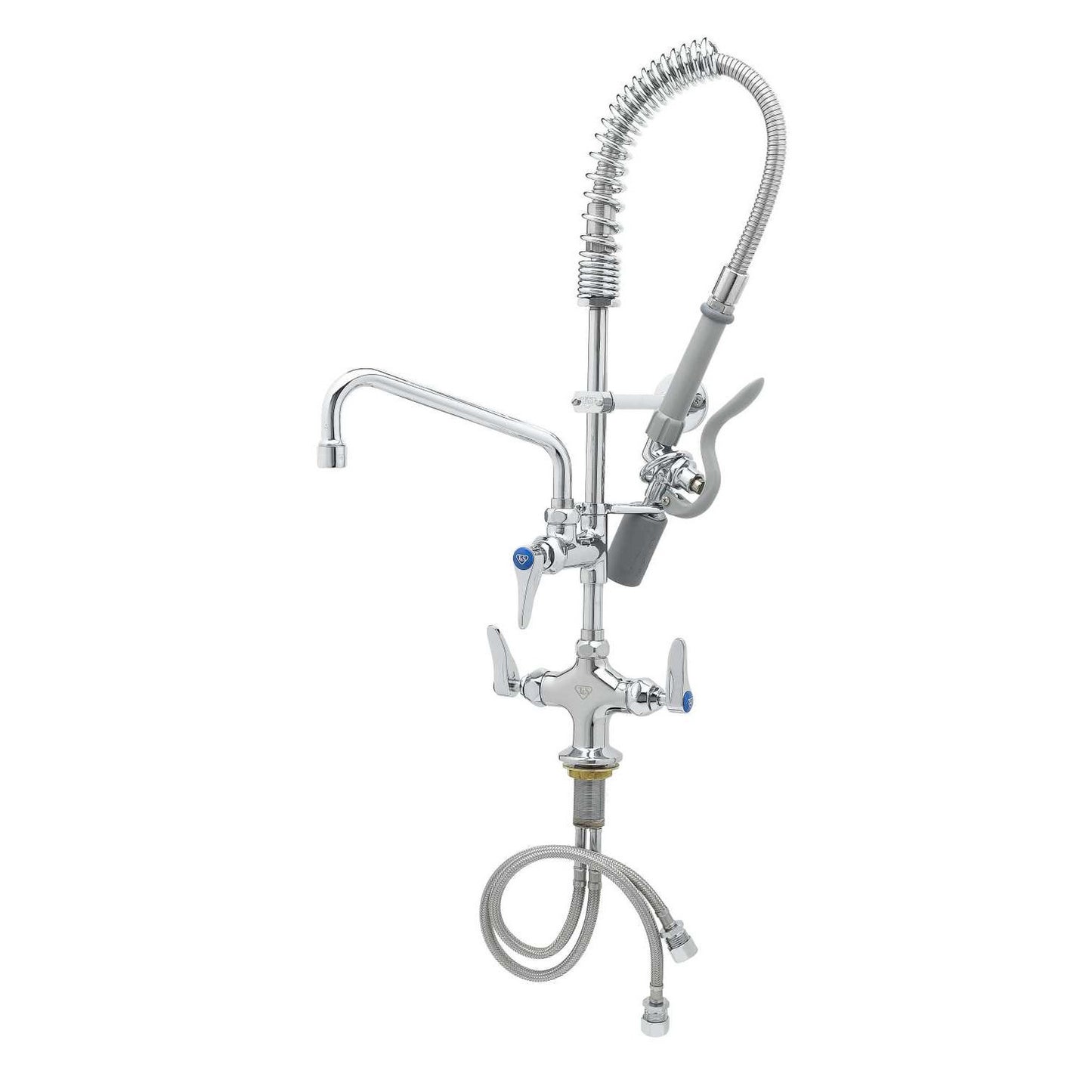

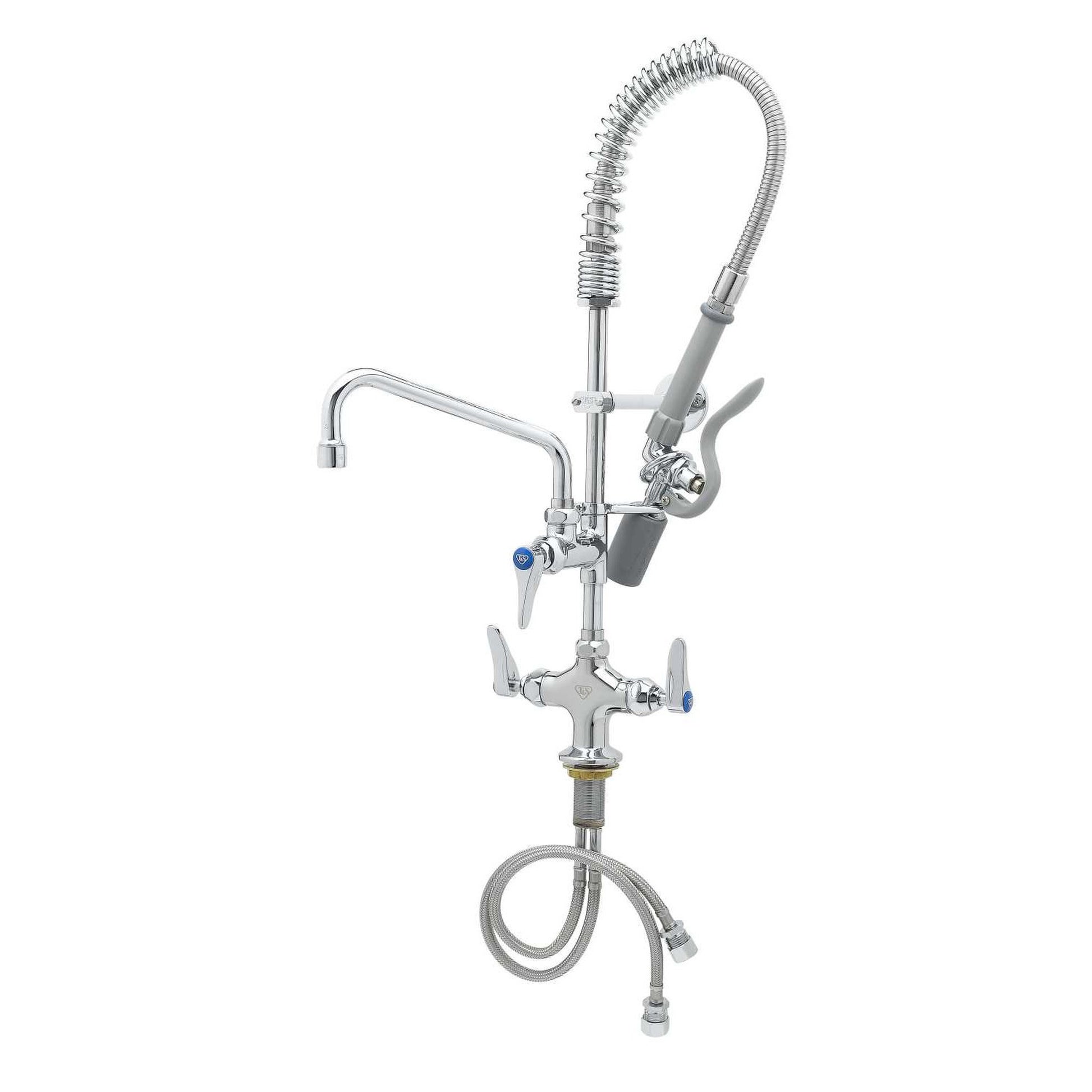

T&S Brass Mini Pre-Rinse Unit Deck Mount 8" Swivel Nozzle Lever - MPY-2DLN-08
T&S Brass Mini Pre-Rinse Unit Deck Mount 8" Swivel Nozzle Lever - MPY-2DLN-08
No reviews
常规价格
$517.00 USD
常规价格
$940.00 USD
促销价
$517.00 USD
结账时计算的运费。
The T&S Brass MPY-2DLN-08 is a commercial deck mount mini pre-rinse unit designed for dishwashing stations and prep sinks in restaurants, cafeterias, and institutional kitchens where space is limited but a full pre-rinse setup is needed. It installs through a single deck hole and includes both a spray valve assembly and an 8" swivel add-on nozzle in one compact unit.
- Single-hole deck mount commercial pre-rinse unit used for scraping and rinsing dishes, pots, and pans at dishwashing stations before warewashing.
- Polished chrome-plated brass body construction with a 24" flexible stainless steel hose, overhead compact spring, heat-resistant spray valve handle, and stainless steel supply hoses.
- Overall height of 24-13/16"; includes an 8" swivel add-on nozzle, an 8" riser, and a 6" adjustable wall bracket for hose support and stability.
- Single-hole deck mount installation; supply hoses connect with 1/2" NPSM / 5/8" compression connections; the 6" adjustable wall bracket accommodates standard commercial sink deck configurations.
- Low flow spray valve rated at 0.65 GPM conserves water during high-volume dishroom use; compression cartridges with spring checks help prevent backflow and reduce leak risk.
- Includes lever handles with color-coded hot/cold indexes, a spray valve holder, and overhead spring for organized hose return between uses.
- Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372; 2019 DOE PRSV Class I compliant.
Dimensions: Overall Height: 24-13/16"; 8" Swivel Nozzle Reach; 8" Riser; 24" Flexible Hose; 6" Adjustable Wall Bracket
