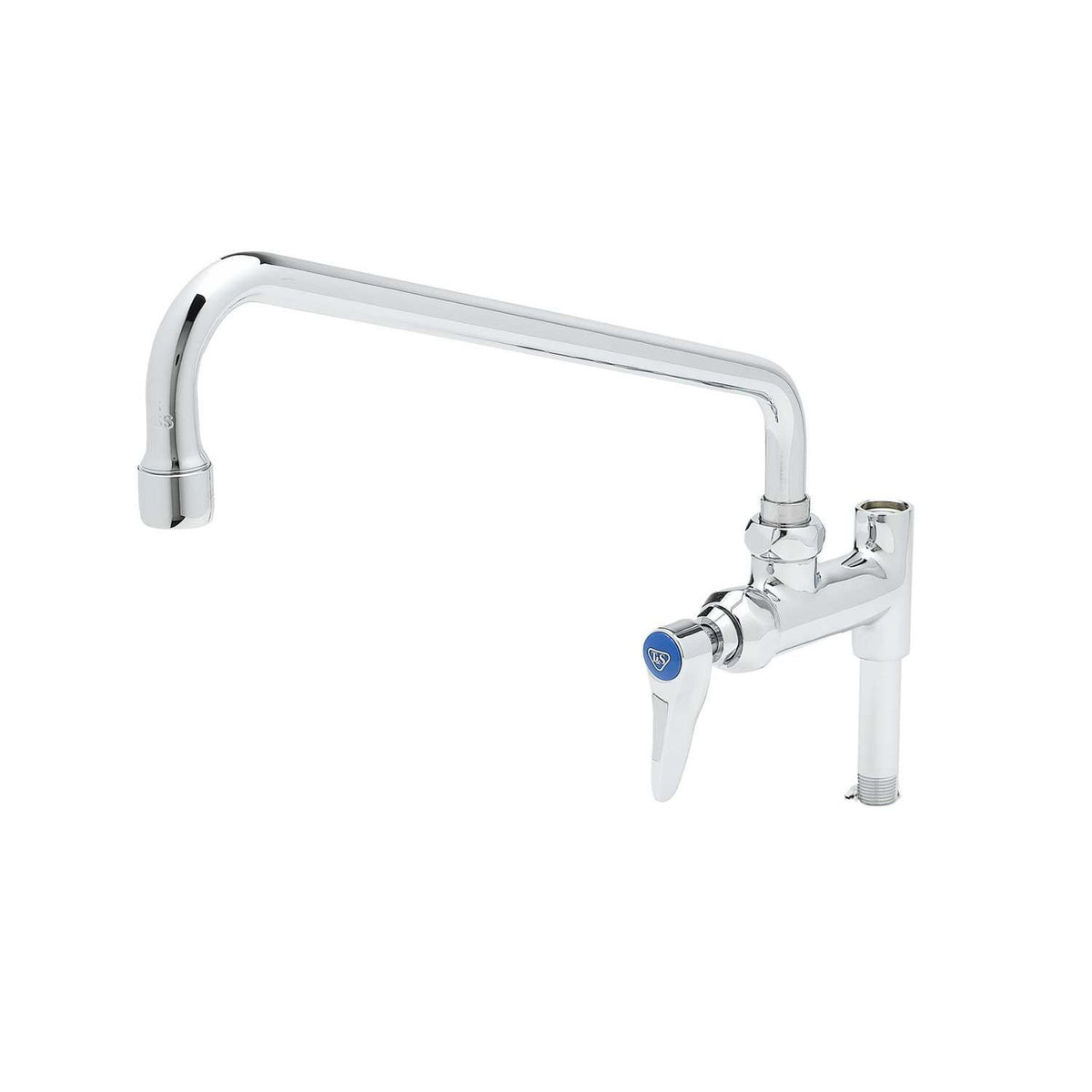

T&S Brass Pre-Rinse Add-On Faucet Chrome Brass 12" Nozzle NSF - B-0156

The T&S Brass B-0156 is a commercial pre-rinse add-on faucet designed to add a swinging nozzle to an existing pre-rinse unit at a dish station or prep sink, giving operators independent on/off water control at the nozzle without replacing the base faucet. It is a direct-fit accessory for foodservice plumbing systems that need added reach or a secondary rinse point at the sink.

• Commercial pre-rinse add-on faucet with a polished chrome-plated brass body, 3/8" NPT female outlet, 12" swing nozzle with stream regulator outlet, lever handle, and 3/8" NPT male inlet.

• Material is polished chrome-plated brass body with tubular nozzle and nipple, and a chrome-plated metal handle.

• Spout length is 12", spout height is 11-1/4", and spout clearance is 8-1/8".

The B-0156 increases the overall height of a pre-rinse unit by approximately 4-1/2" (114mm).

• This add-on faucet is designed for pre-rinse units and should be installed in the outlet of a base mixing faucet, prior to fitting a riser pipe.

Includes a 3" nipple for installation on existing base faucets (part 000358-40).

• The lever handle controls water on/off through the nozzle only, and the tip of the spout is male threaded for aerator attachment.

• Operating pressure range is 20–125 PSI with a temperature range of 40°F–180°F; flow rate is approximately 5.35 GPM at 60 PSI.

Made in the United States of America.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372; meets ADA ANSI/ICC A117.1 requirements.

• Also listed to ANSI/NSF 61 and 372 and is BAA/ARRA compliant.

Dimensions: Spout Length: 12" | Spout Height: 11-1/4" | Spout Clearance: 8-1/8"
