T&S Brass Stainless Steel Recessed Wall Mount Eye/Face Wash Station - EW-7656WC

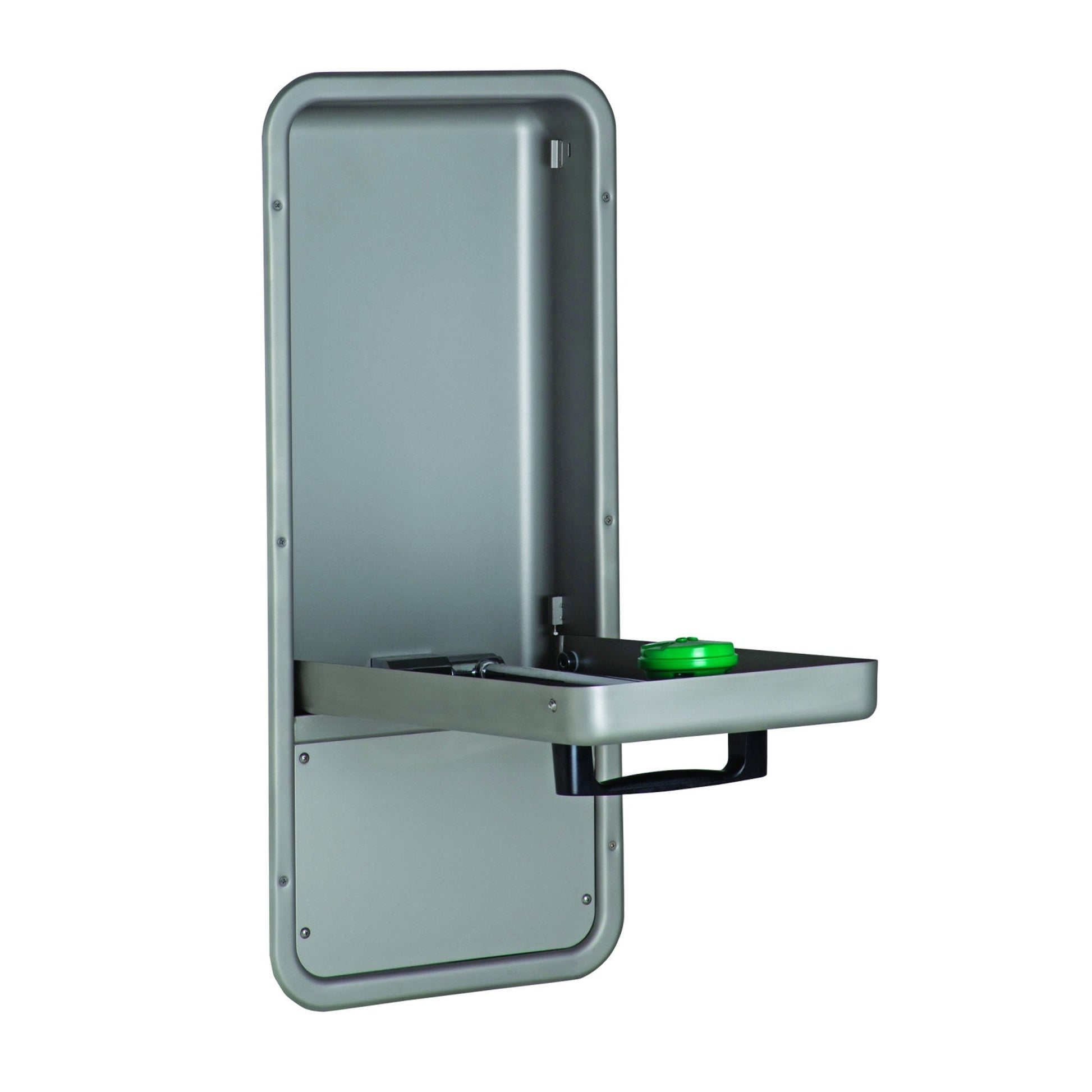

The T&S Brass EW-7656WC is a recessed, wall-mounted emergency eye and face wash station built for commercial kitchens, food processing facilities, laboratories, and any commercial environment where OSHA-mandated eyewash access is required. It installs flush into the wall to keep floor and counter space clear while placing emergency wash capability exactly where workers need it.

• Recessed wall-mount emergency eyewash and face wash unit designed for commercial and industrial safety compliance, model EW-7656WC by T&S Brass
• Stainless steel housing with an 18-gauge Type 304 stainless steel cabinet in a bead-blast finish, paired with a polished chrome-plated brass single pull-down valve with strainer
• Unit measures 32"H x 14"W x 5"D; the recessed depth is 3-1/2", keeping the unit close to flush with the finished wall surface
• Connects via 1/2" NPT inlet; stainless steel drain pan collects water and directs it to a 2" NPT waste outlet; operating pressure range is 30-90 psi, water temperature range is 60°F-100°F
• Single-action pull-down lever simultaneously exposes and activates twin Feather-Flo ABS spray heads with integral flip-top dust covers that release automatically when water flows, keeping heads clean between uses
• Includes a universal emergency eyewash sign and a weekly testing record tag; unit ships at approximately 26 lbs; compliant with BAA/ARRA requirements, making it eligible for government and public works projects

• Certified to ANSI Z358.1 and cCSAus listed

Dimensions: 32"H x 14"W x 5"D (recessed depth 3-1/2")
