T&S Brass Wall Mount Eyewash Station with Thermostatic Mixing Valve - EW-7360B-TMV
T&S Brass Wall Mount Eyewash Station with Thermostatic Mixing Valve - EW-7360B-TMV

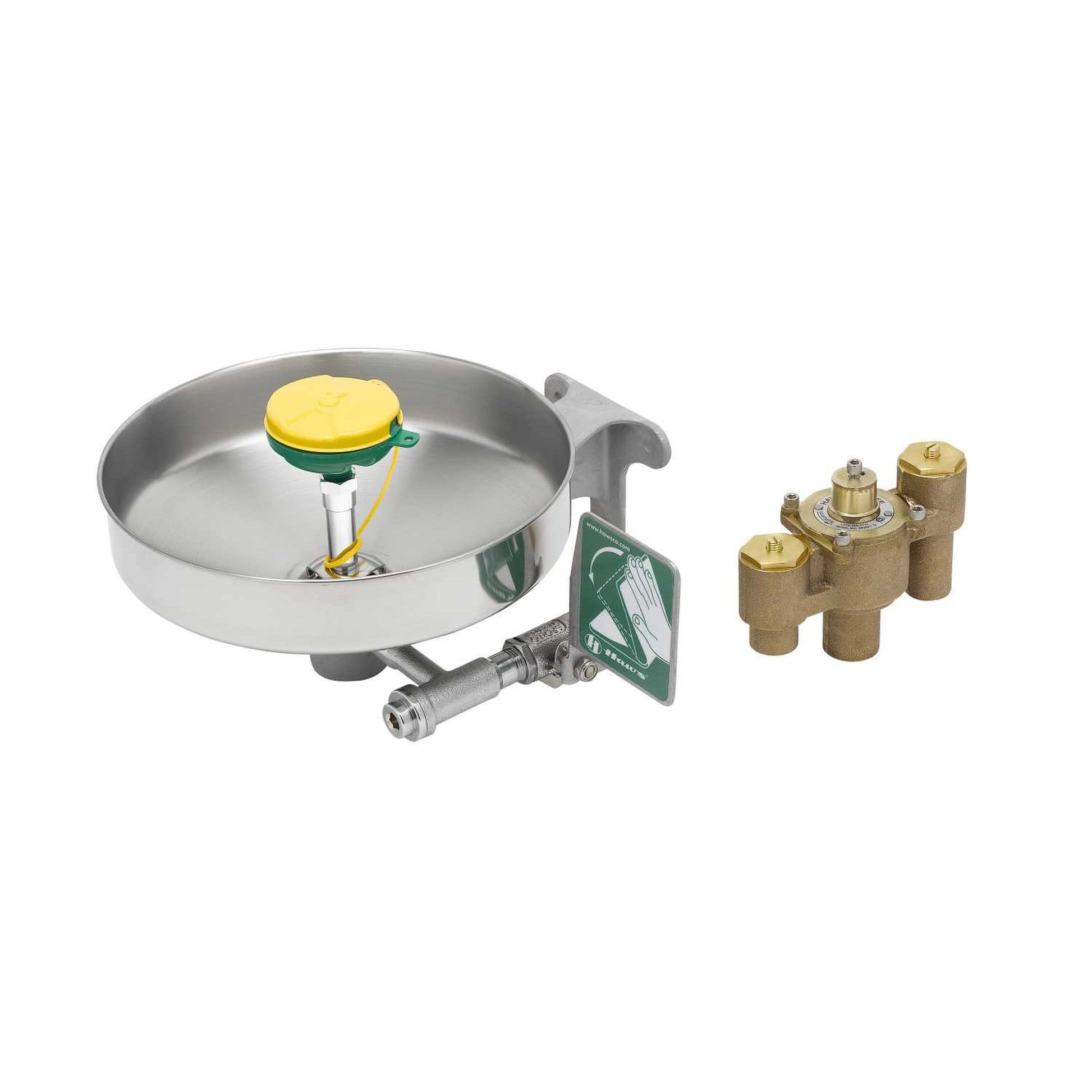

The T&S Brass EW-7360B-TMV is a wall mount eye and face wash station designed for commercial foodservice, institutional, and industrial facilities that require a code-compliant emergency eyewash fixture with built-in temperature control. This unit combines the EW-7360B eyewash body with the EW-9201EF thermostatic mixing valve in a single assembly, giving operators tempered water delivery without a separate mixing valve installation.
- Wall mount eye/face wash station intended for commercial and institutional use in kitchens, labs, and facilities where emergency eye irrigation is required by code
- Constructed with a round stainless steel receptor, chrome-plated brass stay-open ball valve, and an ABS plastic eyewash head with a laminar flow device for controlled, even water delivery
- Basin width is 11-3/16"; the unit ships in a 22.5" x 12" x 16" box and weighs 14 lbs
- Connects via 1/2" NPT inlet with a 1-1/4" NPT waste outlet; operates at 30-90 psi water pressure and a temperature range of 60°F to 100°F with a flow rate of 3.7 GPM at 60 psi
- Integral flip-top dust cover keeps the eyewash head clean between uses, and the stay-open ball valve allows hands-free operation once activated
- Made in the USA; backed by T&S Brass' one-year limited warranty; complies with Buy American Act (BAA) requirements
- Certified to ANSI Z358.1
Dimensions: Basin width: 11-3/16" | Box: 22.50" x 12.00" x 16.00"
Parts are non-refundable and non-returnable. Please confirm compatibility before ordering.
无法加载取货服务可用情况
SKU:T-SEW-7360B-TMV
