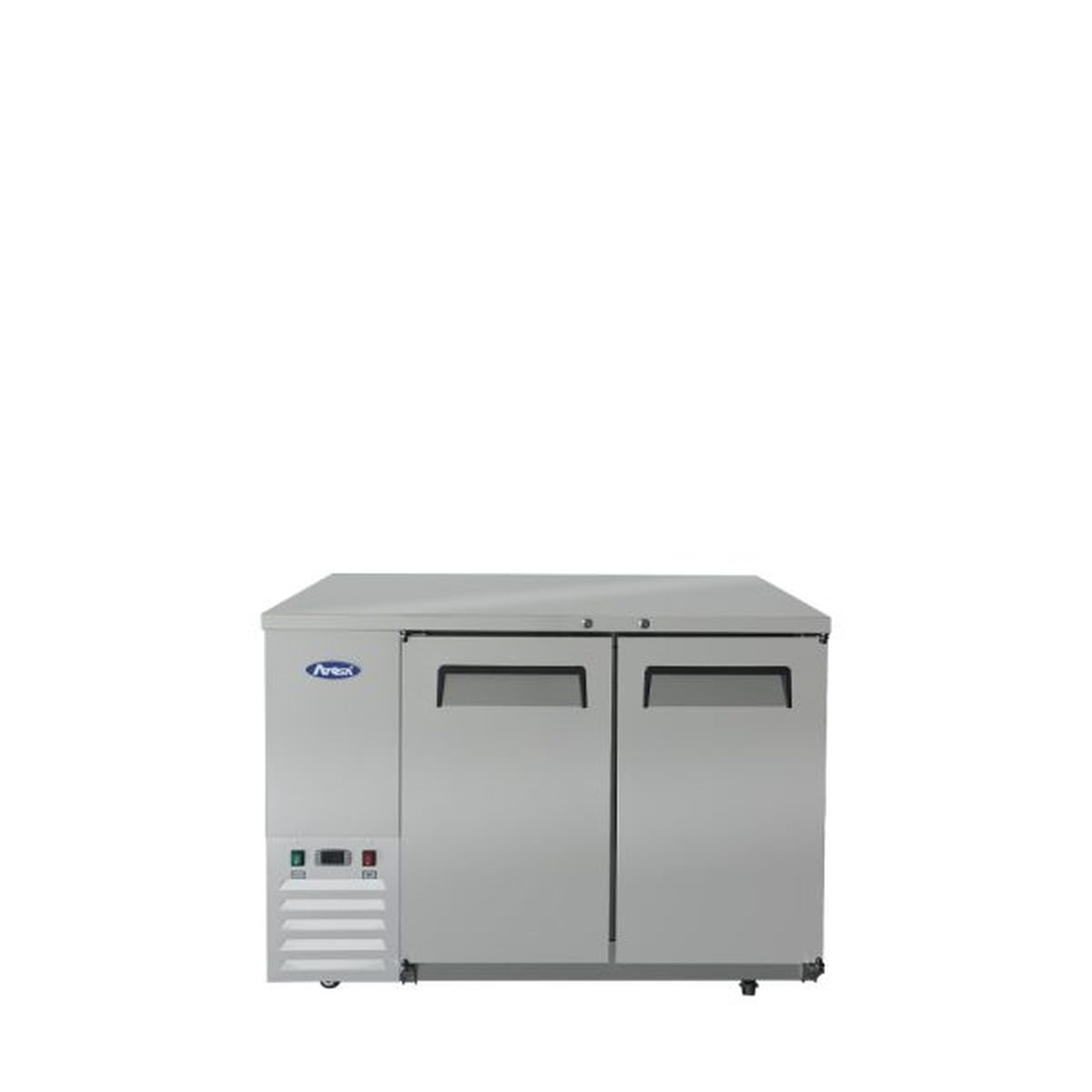

Atosa Stainless Steel Back Bar Cooler 2 Solid Doors 48" W MBB48GR

The Atosa MBB48GR is a 48" two-section back bar cooler with two solid doors. It is built for bars, restaurants and hospitality operations that need locked, refrigerated beverage and mixer storage behind the counter. It measures 48" wide by 28-1/10" deep by 40-1/8" high and holds 13.4 cu. ft. at 35°F to 38°F. A self-contained, side-mounted 1/7 HP Embraco compressor uses R290 hydrocarbon refrigerant and runs on a standard 115V circuit, and the cabinet is stainless steel inside and out. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Stainless steel exterior and interior
• Electronic temperature controller holds 35°F to 38°F
• Heavy-duty Embraco compressor with R290 hydrocarbon refrigerant
• Self-contained, side-mounted refrigeration on a slide-out compressor assembly for easier service
• Two solid swing doors with recessed handles and standard door locks
• Magnetic door gaskets for a positive door seal
• Four pre-installed epoxy-coated shelves
• Interior lighting
• Pre-installed 2.5" casters, swivel design, with brakes on two wheels
• Plugs into a standard 115V outlet with a NEMA 5-15P plug, 2.3 A rated current

Atosa MBB48GR specifications

Brand	Atosa
Model number	MBB48GR
Product type	Back bar cooler (refrigerator)
Sections / doors	2 sections, 2 solid swing doors with locks
Capacity	13.4 cu. ft.
Exterior width	48"
Exterior depth	28-1/10"
Exterior height	40-1/8"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, side-mounted, slide-out compressor assembly
Compressor	Embraco, 1/7 HP
Refrigerant	R290 hydrocarbon
Electrical	115 V / 60 Hz / 1-phase, 2.3 A
Plug	NEMA 5-15P
Shelves	4 epoxy-coated, pre-installed
Exterior material	Stainless steel
Interior material	Stainless steel
Door handles	Recessed
Door gaskets	Magnetic
Lighting	Interior light
Casters	2.5", pre-installed, swivel, 2 with brakes
Net weight	192 lb
Shipping weight	240 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation (NSF/ANSI 7)
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What outlet does the Atosa MBB48GR need?

It needs a standard 115V, 15 A receptacle (NEMA 5-15R), since it comes with a NEMA 5-15P plug. It runs on 115 V / 60 Hz / single phase and is rated at 2.3 A, so no hardwiring or 208/230V circuit is needed.

Will it fit through a standard doorway?

Yes. The cabinet is 28-1/10" deep and 40-1/8" high, so it fits through a 36" doorway with room to spare and stands well under an 80" door opening.

Is the MBB48GR a refrigerator or a freezer?

It is a refrigerator. The electronic controller holds 35°F to 38°F, which suits bottled and canned beverages, mixers and garnishes. It is not designed to freeze product.

How much does it hold?

It has 13.4 cu. ft. of storage across two sections, with four epoxy-coated shelves installed at the factory.

What certifications does it have?

It is cETLus listed, which means it conforms to UL Standard 471 and is certified to CSA C22.2 No. 120 for electrical safety in the US and Canada. It is also ETL Sanitation listed to NSF/ANSI Standard 7, the sanitation standard that health inspectors look for on commercial refrigeration.

What warranty comes with it?

Atosa covers the cabinet and all parts against defects in materials and workmanship for 3 years parts and labor. The sealed compressor gets 2 more years, for 5 years in total. The extra compressor coverage applies only to the sealed compressor. It does not cover the cabinet, paint, temperature control, refrigerant, metering device, motor starting equipment or fan assembly. Claims go directly to Atosa and must include the model number, serial number, proof of purchase and installation date. On R290 units, the compressor warranty is void if the system is not serviced according to Atosa's R290 requirements.

What caster options are available?

It comes with 2.5" casters installed. Atosa says this series can also be fitted with 1.2", 1.5", 4" or 5" casters, so you can change the working height or match an existing bar line.

How does the MBB48GR differ from other Atosa back bar coolers?

The MBB48GGR is the same 48" width with glass doors and LED lighting, rated at 12.9 cu. ft. Within the solid-door line, the MBB59GR is 57-4/5" wide with 17.3 cu. ft., and the MBB69GR is 68" wide with 21.5 cu. ft. The MBB90GR is 89-3/10" wide with three doors, six shelves and 30.1 cu. ft. The MBB23GR is a 23" single-door unit with 8.2 cu. ft.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
