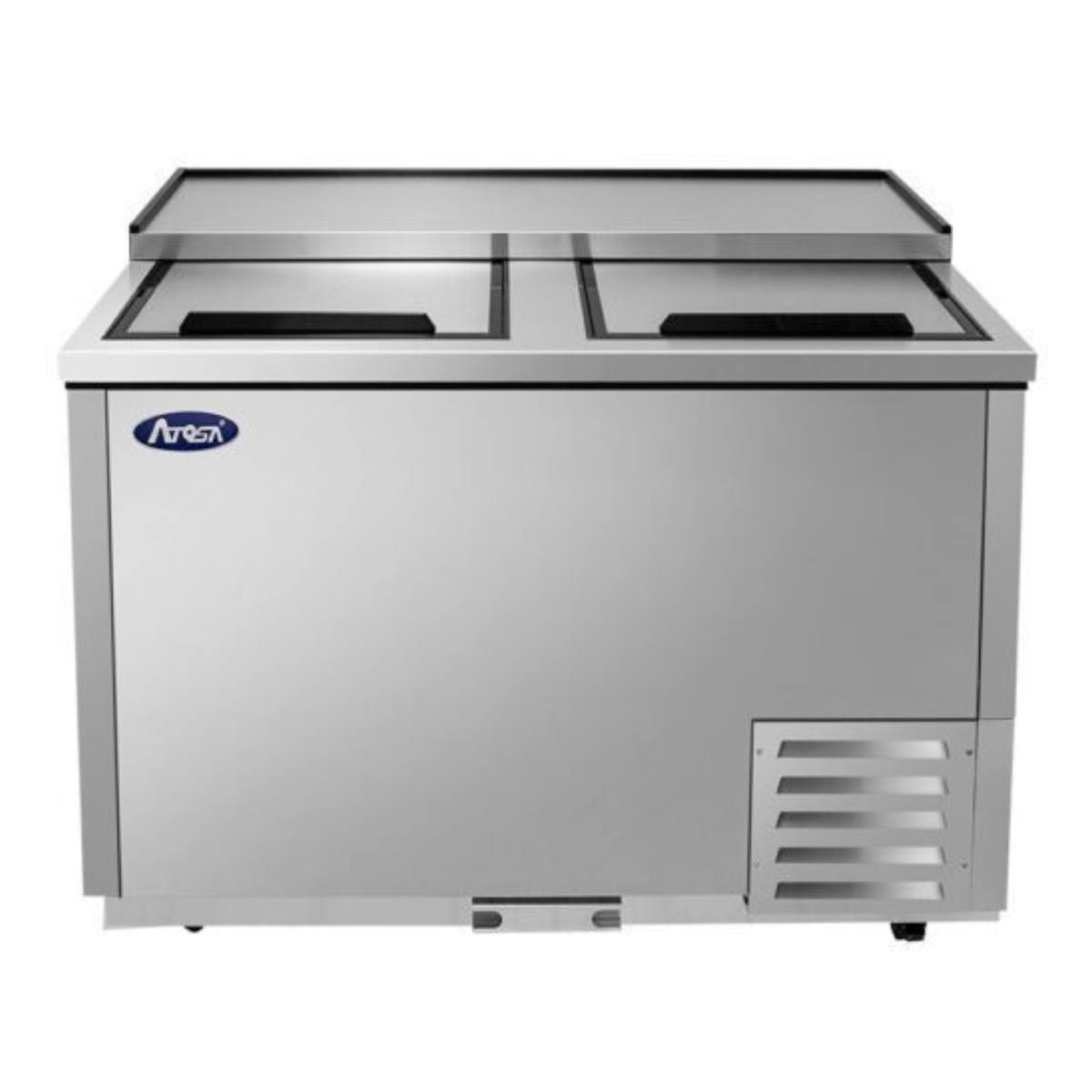

Atosa Stainless Steel Glass Froster 48" - 13.1 Cu. Ft. - MBGF48GR

The Atosa MBGF48GR is a 48" self-contained commercial glass froster and plate chiller for bars, pubs and restaurants that serve draft beer and cold drinks in frosted glassware. It measures 49-1/2" wide by 28" deep by 36-3/4" high and holds 13.1 cu. ft., which is about 240 8" mugs or 230 10 oz. steins. An electronic controller holds the cabinet between -8°F and 0°F and chills glasses and plates to 0°F. The 1/2 HP R290 system runs on 115V at 4.7 amps, and the cabinet is stainless steel inside and out. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 13.1 cu. ft. capacity holds approximately 240 8" mugs or 230 10 oz. steins
• Electronic temperature controller holds -8°F to 0°F and chills glasses and plates to 0°F
• Stainless steel exterior and interior
• Top-loading design with easy-glide sliding stainless steel lid and handles
• Lid locks come standard
• Heavy-duty 1/2 HP compressor with R290 hydrocarbon refrigerant
• Compressor assembly slides out for maintenance
• 9 shelves included
• Four 2" swivel casters come installed with bumpers. Two of the casters have brakes.
• Plugs into a standard 115V outlet with a NEMA 5-15P plug and draws 4.7 amps

Atosa MBGF48GR specifications

Brand	Atosa
Model number	MBGF48GR
Product type	Glass froster and plate chiller, top-loading
Nominal size	48"
Capacity	13.1 cu. ft.
Glassware capacity	Approximately 240 8" mugs or 230 10 oz. steins
Exterior width	49-1/2"
Exterior depth	28"
Exterior height	36-3/4"
Temperature range	-8°F to 0°F
Controller	Electronic
Refrigeration	Self-contained, slide-out compressor assembly
Refrigerant	R290 hydrocarbon
Compressor	1/2 HP
Electrical	115V / 60 Hz / 1 phase, 4.7 A
Plug	NEMA 5-15P
Shelves	9
Lid	Sliding stainless steel lid with handles and lid locks
Exterior material	Stainless steel
Interior material	Stainless steel
Casters	Four 2" swivel casters with bumpers, two with brakes, installed at the factory
Net weight	271 lb
Shipping weight	315 lb
Certifications	cETLus, ETL-Sanitation
Warranty	3 years parts and labor. The compressor is covered for 2 more years, 5 years in total.

Frequently asked questions

What electrical connection does the Atosa MBGF48GR need?

It needs a standard 115V, 60 Hz, single-phase grounded outlet that accepts a NEMA 5-15P plug. The unit draws 4.7 amps and has a 1/2 HP compressor.

Will the MBGF48GR fit through a standard doorway?

Yes. It is 28" deep, so it passes through a 36" doorway. At 36-3/4" high it is well under an 80" door opening. The unit is 49-1/2" wide, so it has to go through the door depth-first.

What temperature does it hold, and is it a freezer?

It holds between -8°F and 0°F and chills glasses and plates to 0°F. It is built to frost glassware and chill plates, not to store food.

How many glasses does the MBGF48GR hold?

It holds about 240 8" mugs or 230 10 oz. steins in 13.1 cu. ft. of space, with 9 shelves included.

What certifications does it have?

It is cETLus listed and ETL-Sanitation certified. cETLus means it meets electrical safety standards in the United States and Canada. ETL-Sanitation means it meets sanitation standards for commercial foodservice equipment, which health inspectors and building officials look for.

What warranty comes with the MBGF48GR?

Atosa covers parts and labor for 3 years. It also covers the sealed compressor against defects for 2 more years from the date of original installation, for 5 years in total. The added compressor coverage applies only to the sealed compressor parts. It does not cover the cabinet, finish, temperature control, refrigerant, metering device, motor starting equipment or fan assembly. You file claims directly with Atosa and need the model number, serial number, proof of purchase and installation date.

How is the MBGF48GR different from the Atosa MBGF24GR?

The MBGF48GR is the larger model. It is 49-1/2" wide and holds 13.1 cu. ft. on 9 shelves, about 240 8" mugs. The MBGF24GR is 24-1/2" wide and holds 5 cu. ft. on 4 shelves, about 90 8" mugs or 85 10 oz. steins. It has a 2/5 HP compressor drawing 3.4 amps. Both are 28" deep and 36-3/4" high, run on 115V, use R290 and hold -8°F to 0°F.

How is the MBGF48GR serviced and moved?

The compressor assembly slides out so a technician can get to it easily. The four casters come installed, and two of them lock with brakes to hold the unit in place behind the bar.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
