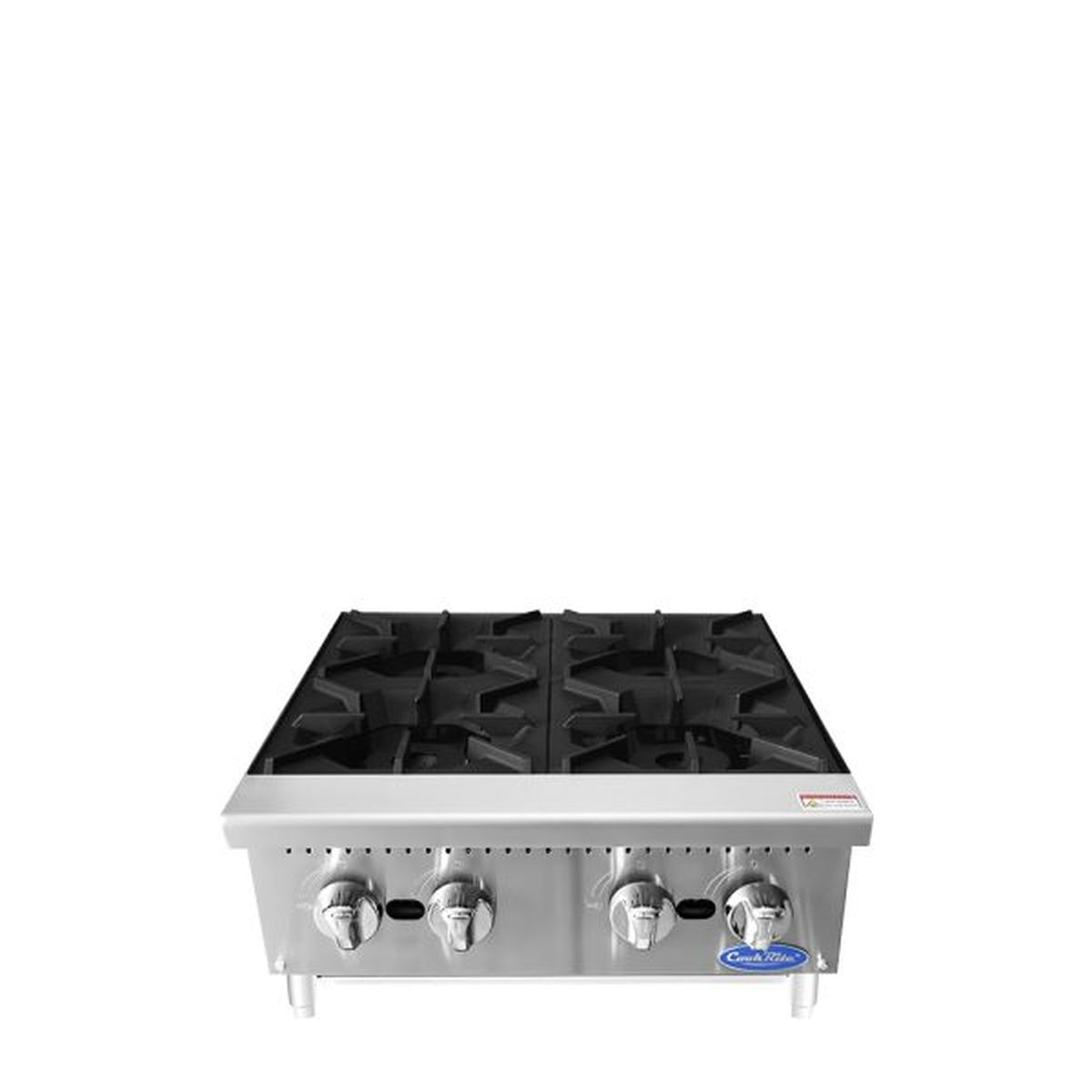

Atosa CookRite Stainless Steel Gas Hotplate 24" - 4 Burners ACHP-4*

The Atosa CookRite ACHP-4 is a 24" countertop gas hotplate with four open burners. It is built for restaurants, cafés, caterers, food trucks and back-up lines that need range-top burners without the floor space of a full range. Each heavy-duty burner is rated at 32,000 BTU/h, for 128,000 BTU/h in total. Every burner has its own manual control and a standing pilot. The unit measures 24" wide by 27-3/5" deep by 13-1/10" high, has a stainless steel exterior and interior, and connects through a 3/4" NPT rear gas connection with a regulator included. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Four heavy-duty open burners at 32,000 BTU/h each, 128,000 BTU/h total
• Independent manual control knob for each burner, mounted on the front
• Standing pilot on each open-top burner
• Heavy-duty cast iron top grates
• Full-width stainless steel crumb tray
• Stainless steel exterior and interior
• Adjustable stainless steel legs for leveling and lining up with nearby equipment
• 3/4" NPT rear gas connection, regulator included
• Available for natural gas (4" W.C.) or liquid propane (10" W.C.)
• cETLus and ETL Sanitation listed

Atosa ACHP-4* specifications

Brand	Atosa (CookRite line)
Model number	ACHP-4 (also listed as ATHP-24-4)
Product type	Countertop gas hotplate, open burners
Number of burners	4
Output per burner	32,000 BTU/h
Total output	128,000 BTU/h
Controls	Independent manual control per burner
Ignition	Standing pilot on each burner
Gas type	Natural gas or liquid propane
Intake pressure, natural gas	4" W.C., regulator factory set at 4" W.C.
Intake pressure, liquid propane	10" W.C., regulator set at 10" W.C.
Gas connection	3/4" NPT, rear
Exterior width	24"
Exterior depth	27-3/5" (27.6")
Exterior height	13-1/10" (13.1")
Grates	Heavy-duty cast iron
Crumb tray	Full-width stainless steel
Construction	Stainless steel exterior and interior
Legs	Adjustable stainless steel legs, standard
Installation clearance	Noncombustible countertop only, at least 6" (152 mm) at both sides and back, at least 4" (102 mm) below
Net weight	94 lb
Shipping weight	125 lb
Certifications	cETLus, ETL Sanitation; conforms to ANSI Z83.11, certified to CSA
Warranty	1 year parts and labor

Frequently asked questions

What gas connection does the Atosa ACHP-4 need?

It connects through a 3/4" NPT gas connection at the rear and comes with a pressure regulator. Natural gas units run at 4" W.C. and liquid propane units at 10" W.C. A qualified gas technician should handle installation and any change of gas type.

Can the ACHP-4 run on propane?

Yes. The ACHP-4 is available in natural gas and liquid propane versions, and both are rated at 32,000 BTU/h per burner and 128,000 BTU/h total. Choose the gas type that matches your kitchen's supply.

How much counter space and clearance does it need?

The unit takes up 24" of width and 27-3/5" of depth and stands 13-1/10" high. It must sit on a noncombustible countertop with at least 6" of clearance at both sides and the back and at least 4" underneath.

Does the ACHP-4 need electricity?

No. It is a manual gas unit with standing pilots and manual valves, so it needs no electrical connection.

What certifications does it have?

It is cETLus and ETL Sanitation listed and conforms to ANSI Z83.11 for gas food service equipment. cETLus covers gas safety in the US and Canada. ETL Sanitation shows the unit meets food equipment sanitation standards, which health inspectors look for in a commercial kitchen.

What warranty comes with the ACHP-4?

Atosa covers it for one year of parts and labor from the date it ships from Atosa. Labor coverage is limited to standard straight-time labor and reasonable travel time. The warranty excludes damage from alteration, neglect, abuse, misuse, accident, transit or installation damage, fire, flood and acts of God. Claims go directly to Atosa and need the model number, serial number and proof of purchase.

How does the ACHP-4 compare with the ACHP-2 and ACHP-6?

All three share the same 32,000 BTU/h burners, 27-3/5" depth and 13-1/10" height. The ACHP-2 is 12" wide with two burners (64,000 BTU/h, 54 lb net). The ACHP-4 is 24" wide with four burners (128,000 BTU/h, 94 lb net). The ACHP-6 is 36" wide with six burners (192,000 BTU/h, 134 lb net).

How do I clean the ACHP-4?

Pull out the full-width stainless steel crumb tray to empty and wash it. Lift off the cast iron grates to get at the burner area, and wipe down the stainless steel surfaces.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
