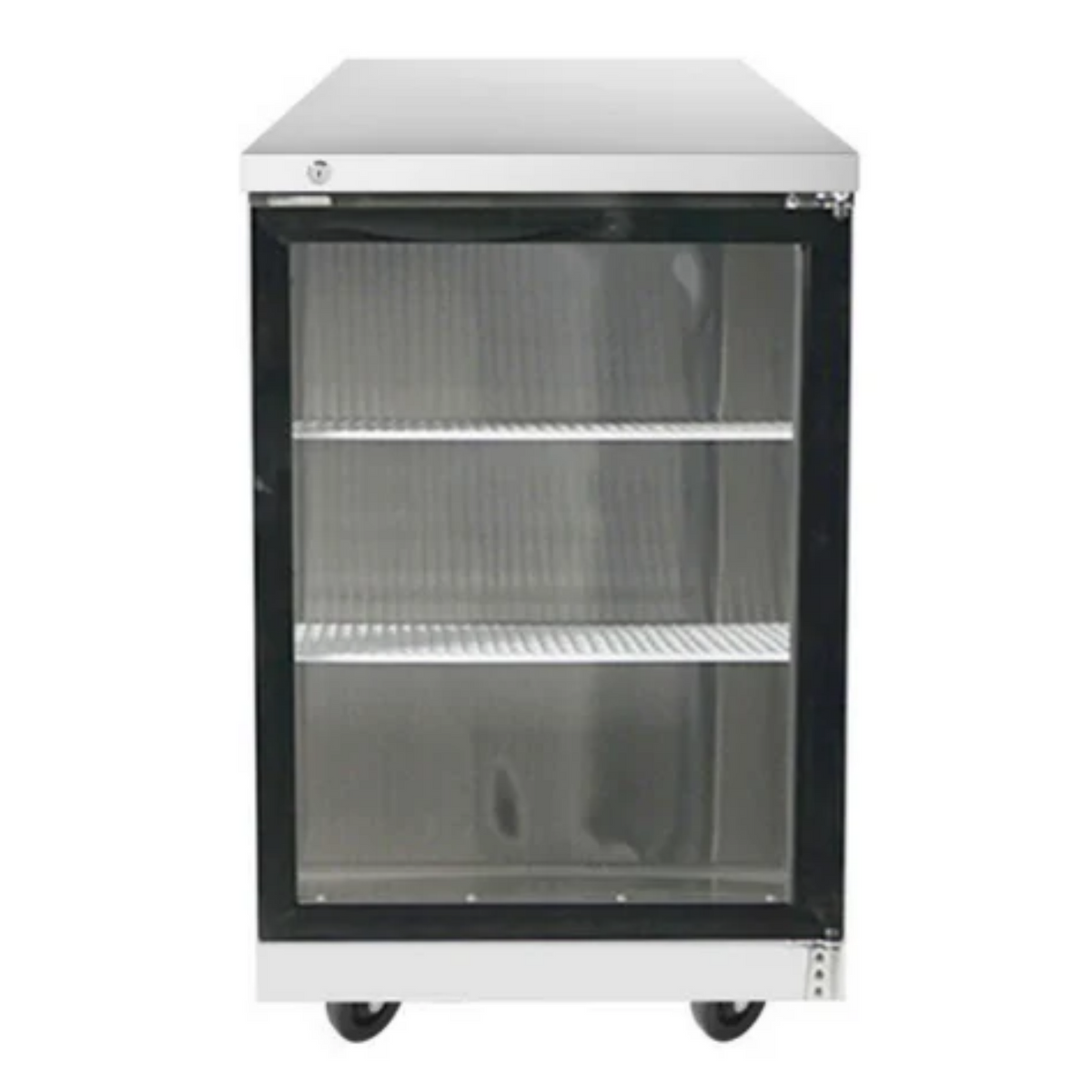

Atosa Back Bar Cooler Stainless Steel Glass Door 23" - 8.2 Cu. Ft. - MBB23GGR

The Atosa MBB23GGR is a one-door, 23" wide glass door back bar cooler for bars, restaurants and beverage stations that need refrigerated bottle and can storage under the counter. It holds 8.2 cu. ft. at 35°F to 38°F and measures 23" wide, 31-1/8" deep and 38-3/4" high. Refrigeration is self-contained and side-mounted, with a 1/7 HP Embraco compressor running on R290 refrigerant. It plugs into a standard 115V outlet and draws 2.3 A. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Locking glass door with LED interior lighting, so staff can see stock without opening the door
• Stainless steel exterior and interior
• Electronic temperature controller holds 35°F to 38°F
• Heavy-duty Embraco compressor with R290 hydrocarbon refrigerant
• Slide-out compressor assembly for service access
• Magnetic door gasket for a positive door seal
• Two pre-installed epoxy-coated shelves for humid environments
• Four pre-installed 3-1/2" swivel casters, two with brakes, each rated for over 150 lb
• 115V cord with NEMA 5-15P plug

Atosa MBB23GGR specifications

Brand	Atosa
Model number	MBB23GGR
Product type	Back bar cooler (refrigerator)
Doors	1 locking swing glass door
Capacity	8.2 cu. ft.
Exterior width	23"
Exterior depth	31-1/8"
Exterior height	38-3/4"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, side mount
Compressor	Embraco, 1/7 HP, slide-out assembly
Refrigerant	R290 hydrocarbon
Electrical	115 V / 60 Hz / 1 phase, 2.3 A
Plug	NEMA 5-15P
Shelves	2 epoxy-coated
Exterior material	Stainless steel
Interior material	Stainless steel
Lighting	LED interior
Casters	3-1/2", set of 4 swivel, 2 with brakes
Net weight	170 lb
Shipping weight	207 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	2 years parts and labor, plus 3 additional years on the compressor (5 years total)

Frequently asked questions

What outlet does the Atosa MBB23GGR need?

It needs a standard 115V, 60 Hz, single-phase outlet that takes a NEMA 5-15P plug, which is an ordinary 15 A grounded receptacle. The unit draws 2.3 A.

Is the MBB23GGR a refrigerator or a freezer?

It is a refrigerator. It holds 35°F to 38°F for chilled beverages and cannot be used as a freezer.

Will it fit through a standard doorway?

Yes. It is 31-1/8" deep and 23" wide, so it passes through a 36" doorway, and at 38-3/4" high it is well under an 80" door opening.

Will it fit under a bar counter?

It is 38-3/4" high on its 3-1/2" casters. Measure the clearance under your counter before ordering, and keep the side-mount refrigeration vents clear.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120 for electrical safety in the US and Canada. It also carries ETL Sanitation, which health inspectors check for in commercial foodservice.

What warranty comes with it?

Atosa covers parts and labor for two years from the date it ships from Atosa. It also covers the sealed compressor for three more years, up to five years total, and will repair or replace a defective compressor at its discretion. Claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date. The warranty does not cover alteration, neglect, abuse, misuse, accidents, damage in transit or during installation, fire, flood or acts of God.

How does it differ from the Atosa MBB23GR?

The MBB23GR has a solid stainless door instead of a glass door. It is shallower, at 29-1/2" deep versus 31-1/8" for the MBB23GGR, and 38-4/5" high. Capacity (8.2 cu. ft.), shelves, compressor and electrical specs are the same. If you need more space, the MBB48GGR is the two-door glass model in the same line.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
