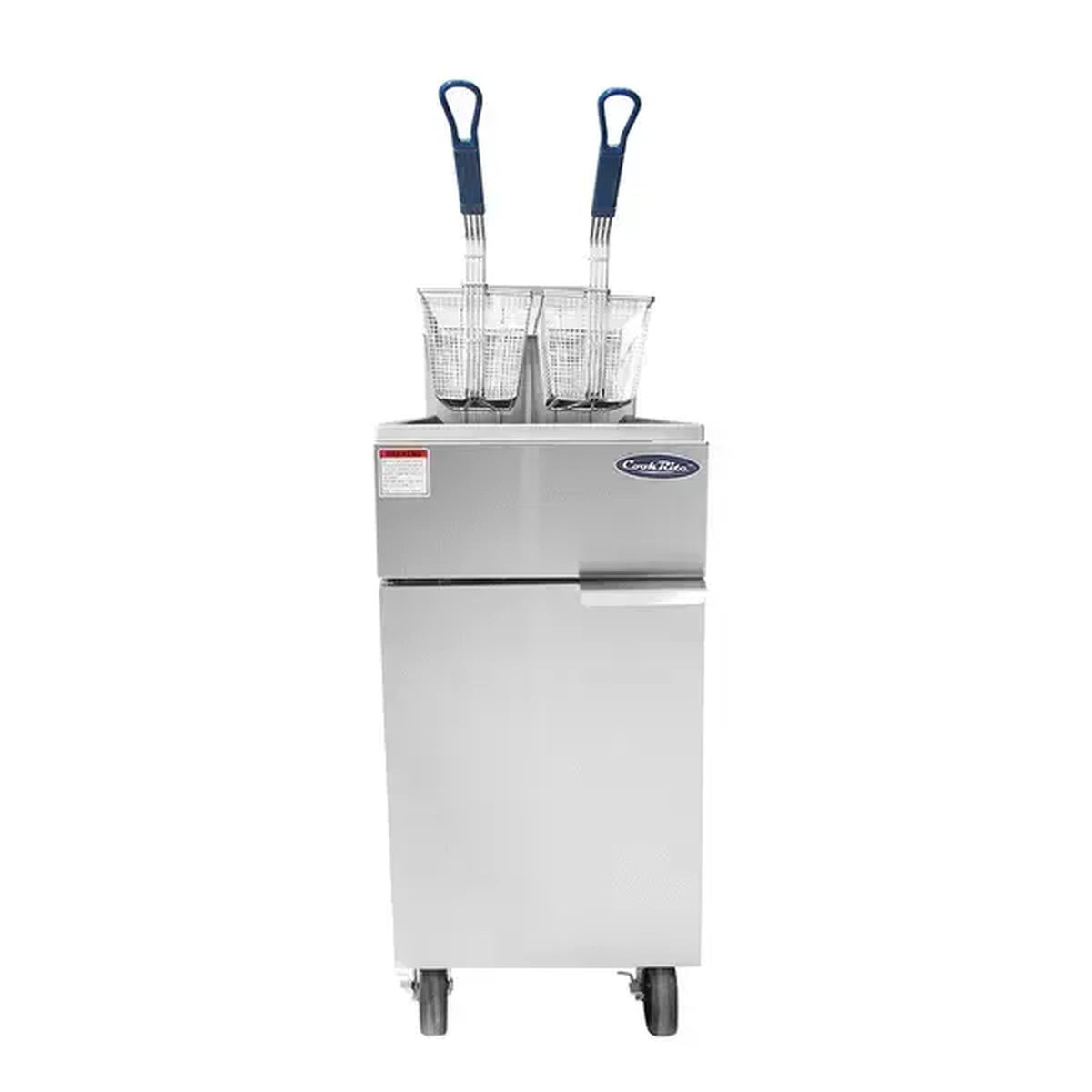

Atosa CookRite Stainless Steel Gas Floor Fryer Energy Star 35 lb ATFS-35ES

The Atosa ATFS-35ES is a 35 lb floor model gas deep fryer for restaurants, bars, food trucks and other foodservice operations that want an ENERGY STAR certified fryer in a narrow footprint. It measures 15-3/5" wide, 30-1/10" deep and 44-2/5" high. Three 20,000 BTU/hr burners give a total of 60,000 BTU/hr, and the thermostat holds oil between 200°F and 400°F. The cabinet is stainless steel inside and out with a welded stainless steel tank, and the fryer comes in natural gas (ATFS-35ES-NG) or liquid propane (ATFS-35ES-LP). East Bay Restaurant Supply ships this model with free shipping.

Key features

• 35 lb oil capacity in a single welded stainless steel fry tank
• Three heavy-duty tube burners at 20,000 BTU/hr each, 60,000 BTU/hr total, on natural gas or propane
• Millivolt thermostat holds the set temperature automatically from 200°F to 400°F
• Standing flame burners with standby pilots, three burners with independent manual control
• Cold zone at the bottom of the tank traps food particles and extends oil life
• Safety valve with automatic voltage stabilizing function and a self-resetting high temperature limit
• ENERGY STAR certified, with a rated idle energy rate of 8,243 Btu/hr
• Two nickel-plated baskets with coated handles, a wire crumb rack and a removable basket hanger included
• 3/4" NPT rear gas connection with regulator included
• Four casters standard, with an optional leg kit (part 301110006)
• Same 15-3/5" cabinet width as the ATFS-40 and ATFS-50 for lining up a battery with a joiner strip

Atosa ATFS-35ES specifications

Brand	Atosa (CookRite line)
Model number	ATFS-35ES (ATFS-35ES-NG natural gas, ATFS-35ES-LP liquid propane)
Product type	Floor model gas deep fryer, single tank
Oil capacity	35 lb (16 kg)
Burners	3 tube burners, independent manual control
BTU per burner	20,000 BTU/hr (NG and LP)
Total BTU	60,000 BTU/hr (NG and LP)
Gas type	Natural gas or liquid propane, specify at order
Gas connection	3/4" NPT, rear, regulator included
Intake pressure and regulator	NG 4" W.C., LP 10" W.C.
Orifice (nozzle) size	NG #36, LP #52
Temperature range	200°F to 400°F
Controls	Millivolt thermostat, standing pilots
Safety devices	Safety valve with automatic voltage stabilizing, self-reset high temperature limit
Exterior width	15-3/5" (15.6")
Exterior depth	30-1/10" (30.1")
Exterior height	44-2/5" (44.4")
Basket dimensions (each)	13-3/10" length x 6-1/2" width x 5-9/10" height
Included accessories	2 nickel-plated baskets with coated handles, wire crumb rack, basket hanger
Materials	Stainless steel exterior and interior, welded stainless steel tank
Casters/legs	4 casters standard, leg kit optional (part 301110006)
ENERGY STAR idle energy rate	8,243 Btu/hr
Net weight	133 lb
Shipping weight	166 lb
Certifications	cETLus, ETL-Sanitation, ENERGY STAR; conforms to ANSI Z83.11
Optional accessories	Splash guard 21101001047, fryer cover 21201001019, joiner strip 21101001046, leg kit 301110006
Warranty	1 year parts and labor from date of shipment from Atosa

Frequently asked questions

What gas connection does the Atosa ATFS-35ES need?

It connects at a 3/4" NPT fitting on the rear, and a regulator comes with it. The natural gas version runs at 4" W.C. and the propane version at 10" W.C. Order the gas type that matches your kitchen's supply, and have a qualified gas installer connect it under a commercial exhaust hood as local code requires.

Does the ATFS-35ES need an electrical outlet?

No. It uses millivolt controls with standing pilots, so it runs on gas alone and needs no electrical connection.

What temperature range does it cover?

The thermostat holds the set temperature automatically between 200°F and 400°F. A high temperature limit that resets itself adds overheat protection.

Will it fit through a standard doorway?

Yes. At 30-1/10" deep and 15-3/5" wide, it passes easily through a 36" doorway. At 44-2/5" high, it is well under a standard 80" door opening.

What certifications does it have?

It is cETLus listed for gas safety in the US and Canada, ETL-Sanitation listed for commercial food sanitation, and ENERGY STAR certified. The ENERGY STAR rating means it was tested to meet the program's limits on idle energy use and cooking efficiency, and it often makes the fryer eligible for gas utility rebates.

What warranty comes with it?

Atosa covers parts and labor for 1 year from the date the fryer ships from Atosa. Labor is paid at standard straight-time rates, plus reasonable travel time. Claims go directly to Atosa and need the model number, serial number and proof of purchase. Atosa does not cover parts damaged by alteration, neglect, abuse, misuse, accident, damage in transit or installation, fire, flood or acts of God.

How does the ATFS-35ES differ from the ATFS-40, ATFS-50 and ATFS-75?

The ATFS-35ES is the ENERGY STAR model in the line, with 35 lb of oil and 60,000 BTU/hr from three burners. The ATFS-40 holds 40 lb and the ATFS-50 holds 50 lb with four burners, and both share the 15-3/5" width. The ATFS-75 has a 75 lb tank and five burners in a wider cabinet. The ATFS-35ES, ATFS-40 and ATFS-50 use the same fryer cover, 21201001019.

What factory options and accessories are available?

You can order it for natural gas or propane. Accessories include a leg kit to replace the standard casters (301110006), a splash guard (21101001047), a fryer cover (21201001019) and a joiner strip for setting fryers side by side (21101001046).

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
