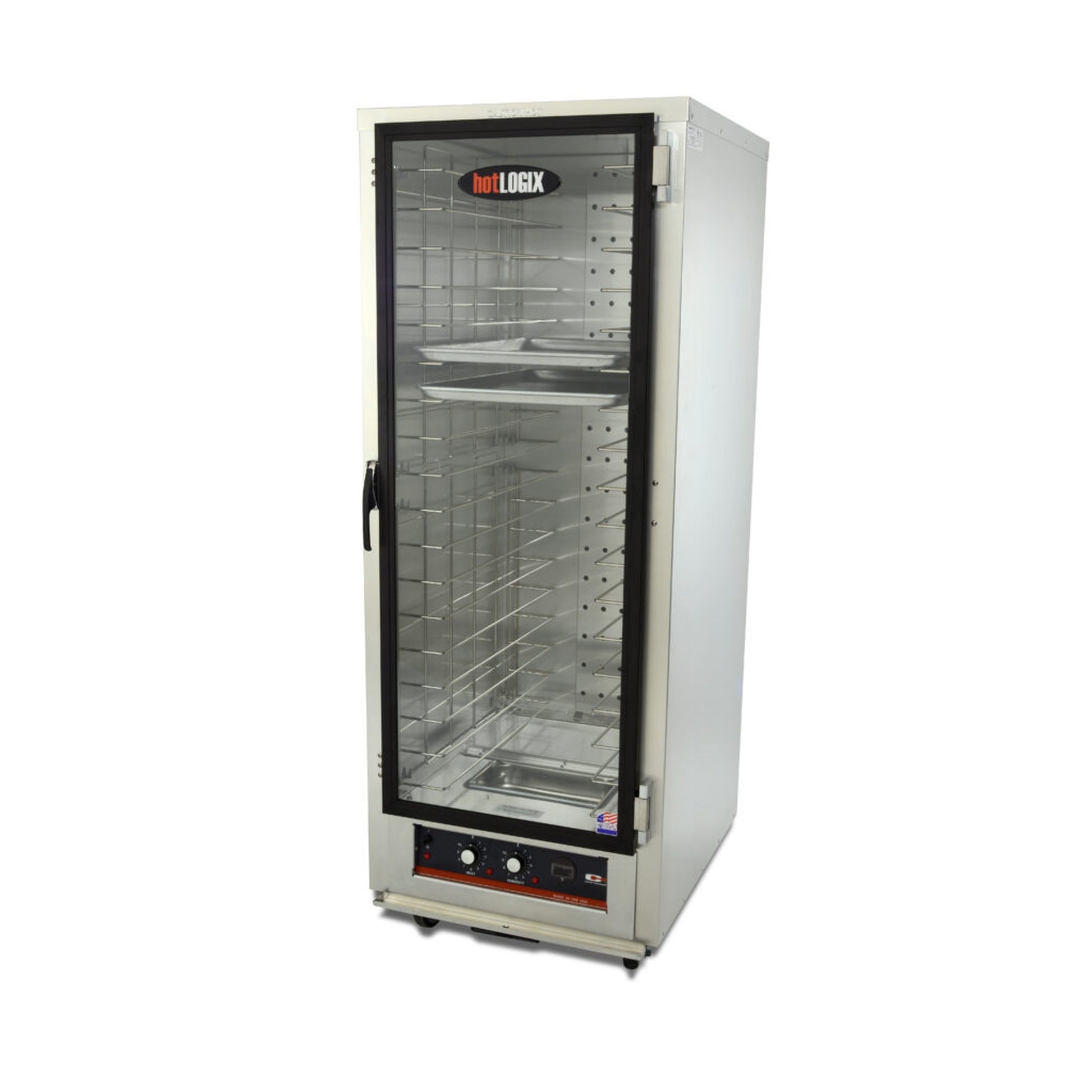

Carter-Hoffmann hotLOGIX4 Humidified Insulated Aluminum Holding Cabinet - HL4-18

The Carter-Hoffmann HL4-18 hotLOGIX is a full-size, insulated, heated and humidified holding cabinet built for commercial foodservice operations that need reliable hot holding and proofing capacity in a mobile floor-model unit. Restaurants, catering operations, and bakeries running high-volume service will find it handles both sheet pan and steam table pan loads without requiring a dedicated utility connection beyond a standard 120V outlet.

• Commercial humidified holding cabinet and heater proofer from Carter-Hoffmann's HL4 Series, designed to hold cooked food warm and ready for service; can also be used for proofing dough and baked goods.
• Double-wall, insulated aluminum construction with a .063 exterior and 2V finish; insulation reduces heat loss and supports energy efficiency during extended holding periods.
• Full-size model with overall dimensions of 70-5/8" H x 31-1/2" D x 26-1/2" W and a net shipping weight of 218 lbs; accepts 18 pairs of universal slides at 3-inch fixed spacing.
• Holds 18 sheet pans (18" x 26") or 36 steam table pans (12" x 20"); the fixed universal wire slides accommodate both pan formats without any conversion hardware.
• Features independent mechanical dial controls for heat and humidity; the bottom-mounted heater uses an Incoloy-sheathed heating element and a blower fan circulates heated, humidified air throughout the cabinet.
• Runs on 120V/60Hz/1-phase at 2,100W and 15.0A, with a NEMA 5-20P plug; the cabinet mounts on four 5" swivel casters, two of which include brakes for stationary positioning.
• Reaches 160°F in approximately 30 minutes and a maximum operating temperature of 190°F; maximum relative humidity is 95%, with a high-impedance protected fan motor.
• The stainless steel bottom-mounted water reservoir holds 2.5 quarts and must be manually refilled; a digital thermometer with a remote sensing bulb displays temperature in one-degree increments.
• The single-pane tempered glass door is field reversible and fitted with a high-temperature santoprene gasket.
• ETL and ETL-Sanitation certified.
• Conforms to UL Standard 197 and certified to CAN/CSA Standard C22.2; also conforms to NSF/ANSI Standard 4.

Dimensions: 70-5/8" H x 31-1/2" D x 26-1/2" W
