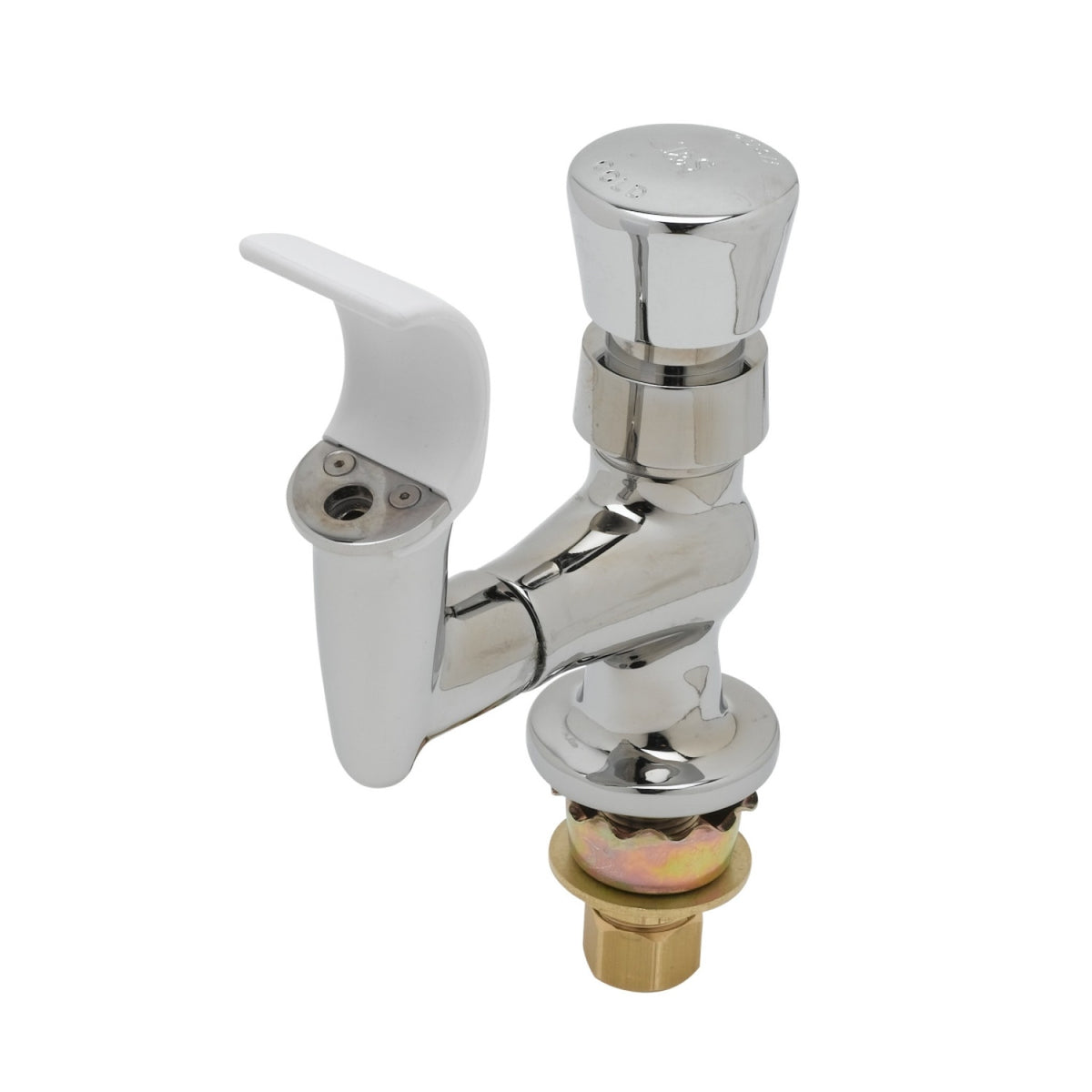

T&S Brass Deck Mount Bubbler NSF ADA Chrome Brass Push Button Metering - B-2360-01

The T&S Brass B-2360-01 is a deck mount push button metering bubbler built for commercial drinking fountains in foodservice facilities, schools, healthcare buildings, and other high-traffic institutional settings. It delivers controlled, timed water flow with an ADA-compliant push button activation and ships ready to connect to standard 1/2" plumbing.

• Deck mount commercial drinking fountain bubbler with push button metering cartridge that delivers an adjustable timed flow cycle of 10 to 30 seconds, reducing water waste in high-use environments
• Body constructed from polished chrome plated brass with a flexible rubber mouth guard and chrome plated metal push button cap
• Connects via 1/2" NPSM male inlet with coupling nut included; spout sits 3-7/8" above the center of the inlet for proper arc height
• Designed for direct deck mounting on standard drinking fountain basins; mounting flange is compatible with an optional anti-rotation screw kit (sold separately, model B-2360-01-AR) for added stability
• Hidden flow control screw allows outlet flow adjustment without disassembly, supporting routine maintenance in busy commercial settings
• Lead law compliant and made in the USA; the metering cartridge limits run-on water flow, which supports sanitation protocols and lowers water utility costs

• Certified to ASME A112.18.1/CSA B125.1
• Certified to NSF 61 Section 9 and NSF 372 (low lead content)
• Meets ADA requirements per ANSI/ICC A117.1

Dimensions: 3-7/8" from spout to center of inlet (mounting height); 1/2" NPSM male inlet connection
